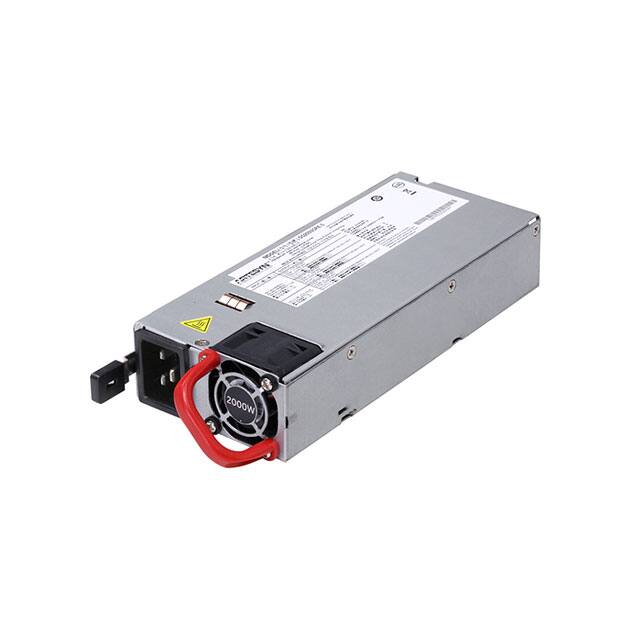

The Artesyn Embedded Power DS2000SPE-3 is a 2000 Watt distributed power system, offering an ultra-high density design with 50W per cubic inch. Housed in a 1U high rack-mounting enclosure, it measures 3.4 x 7.7 inches, freeing up valuable system space. This front-end power supply operates from 90 to 140 VAC and 180 to 264 VAC, delivering up to 2000W continuous output power at high line.
Key electrical specifications include a peak efficiency of 94.0% and active power factor correction. The main DC output provides 12.2V at up to 163.9A at high line, with a total output regulation range of 11.4V to 12.9V. It also features a standby DC output of 12V at 3.5A. The DS2000SPE-3 includes features such as active current sharing, PMBus compliance, and 80 PLUS Platinum efficiency.
Designed for ITE (Commercial) applications, this power supply supports N+1 or N+N redundancy. It meets Class A conducted and radiated EMI standards and is RoHS3 compliant. The unit is safety certified by CB, CE, cUL, DEMKO, and UL.
With its compact form factor and high power density, the DS2000SPE-3 is suitable for demanding power applications where space and efficiency are critical.
The DS2000SPE-3 provides 2000 W continuous output power at high line.
The DS2000SPE-3 operates from 90 to 140 VAC for 1000 W output and 180 to 264 VAC for 2000 W output.
The peak efficiency of the DS2000SPE-3 is 94.0%.
The main DC output voltage is 12.2 V, with a maximum current of 163.9 A at high line.
Yes, it features a standby DC output of 12 V at 3.5 A.
The DS2000SPE-3 meets Class A for both conducted and radiated EMI.
The DS2000SPE-3 measures 185.4mm (7.30") in length, 86.3mm (3.40") in width, and 38.5mm (1.52") in height.
