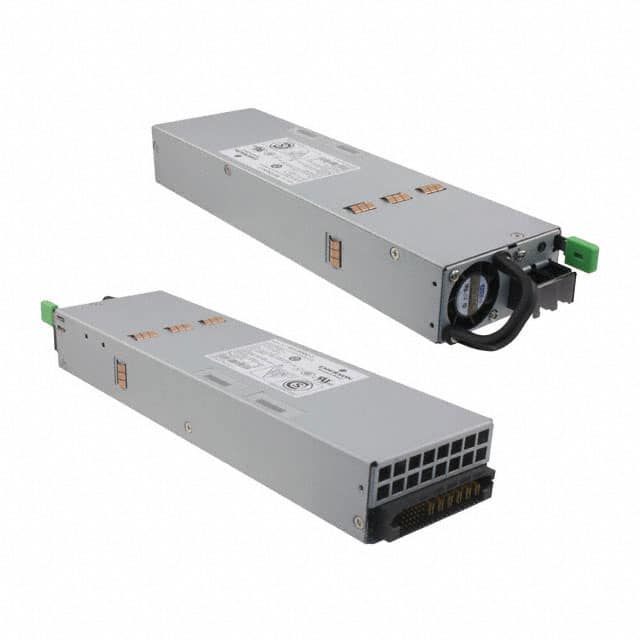

The Artesyn Embedded Power DS1200HE-3 is a high-power distributed power system offering 1200 watts of continuous output power. This front-end bulk power supply operates with a wide input voltage range of 90-140 VAC and 180-264 VAC, making it suitable for various global applications.
Key electrical specifications include a 12V main DC output with a total regulation range of 11.4V to 12.6V and a maximum output current of 100A. The unit boasts 80 PLUS Platinum efficiency, reaching up to 94.0% peak, and features Active Power Factor Correction (PFC) with a typical power factor of 0.9 and ITHD of 10%. It also includes a 3.3V or 5.0V standby output.
Designed for demanding applications, the DS1200HE-3 supports N+1 or N+N redundancy and hot-plug operation with active current sharing. It meets EN61000-3-2 harmonic compliance and Class B conducted and radiated EMI standards. The power supply is housed in a 1U x 2U form factor, suitable for rack mount installations, with dimensions of 279.4mm x 81.3mm x 39.9mm.
Protective features include over-current, over-voltage, under-voltage, and over-temperature protection. The unit operates within a temperature range of -10°C to 70°C with derating. It is compliant with UL/cUL 60950, EN60950, and carries CE marking.
The DS1200HE-3 provides a maximum continuous output power of 1200W.
The main DC output voltage is nominally 12V, with a regulation range of 11.4V to 12.6V.
The input voltage range is 90-140 VAC for 1000W output and 180-264 VAC for 1200W output.
The DS1200HE-3 achieves up to 94.0% peak efficiency and is rated 80 PLUS Platinum.
The dimensions are 279.4mm (Length) x 81.3mm (Width) x 39.9mm (Height).
The operating temperature range is -10°C to 70°C, with derating applied.
