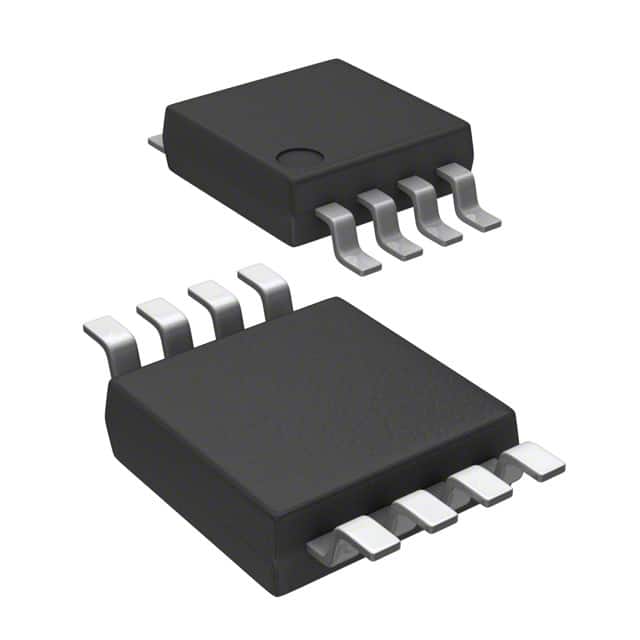

The DS1086LU-12F+T is a programmable clock generator from Analog Devices / Maxim Integrated, designed to produce a spread-spectrum square-wave output. It operates with a supply voltage range of 2.7V to 3.6V and is specified for an industrial temperature range of -40°C to +85°C.
This device features user-programmable frequencies from 130kHz to 66.6MHz, with selectable dithered output percentages of 0.5%, 1%, 2%, 4%, or 8% to reduce radiated emission peaks. It includes a power-down mode and a glitchless output-enable control, making it suitable for power-sensitive applications. All device settings are stored in non-volatile EEPROM, allowing for stand-alone operation.
The DS1086LU-12F+T utilizes a 2-wire serial interface for programming and requires no external timing components. It is available in an 8-TSSOP, 8-MSOP package and is surface-mountable.
Key applications include printers, copiers, PCs, computer peripherals, cell phones, and cable modems where EMI reduction and precise clock generation are critical.
The operating voltage range is 2.7V to 3.6V.
The operating temperature range is -40°C to +85°C.
The maximum frequency output is 66.6MHz.
Yes, it is a Spread Spectrum Clock Generator with selectable dither percentages of 0.5%, 1%, 2%, 4%, or 8%.
It is supplied in an 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) package.
