Mfr Part #:

DRC23-40PA-N012

Name: DRC23-40PA-N012
Brand: TE Connectivity
SKU: DRC23-40PA-N012

Mfr Name: TE Connectivity

Description:

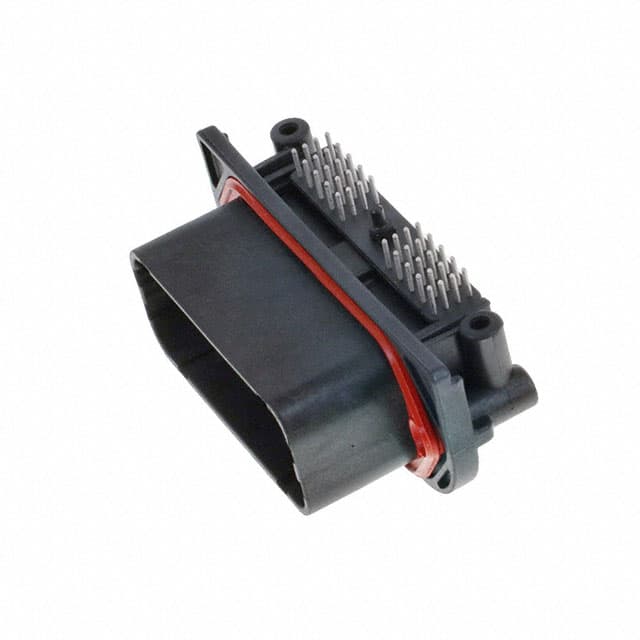

CONN HEADER BRD EDGE 40POS

Stock on Request

DRC23-40PA-N012 Description

Short technical summary and product information.

CONN HEADER BRD EDGE 40POS

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Headers, Male Pins
Manufacturer Name	TE Connectivity
Connector Type	Receptacle
Contact Finish	Tin
Contact Length	0.125" (3.18mm)
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Threaded
Features	Board Guide, Flange
Insulation Color	Black
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Mounting Type	Board Edge, Through Hole, Right Angle
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	4
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
