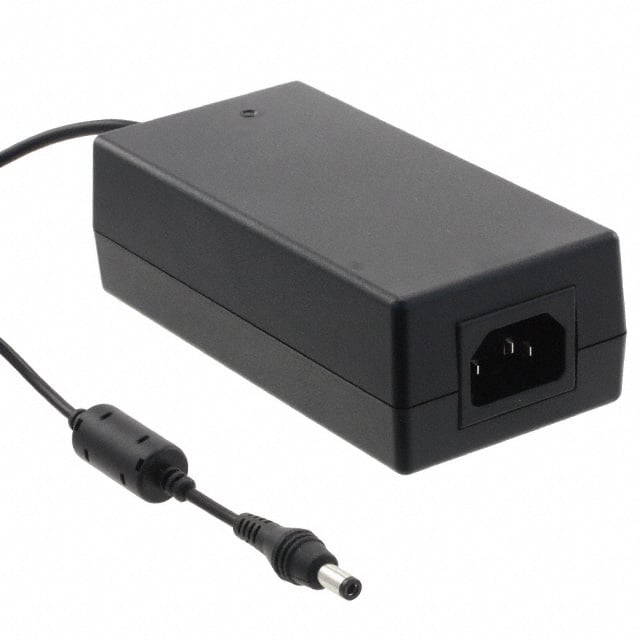

DP4024N3M The Artesyn Embedded Power DP4024N3M is a 40W AC/DC desktop adapter providing a 24V output. It features Level V efficiency and an IEC 320-C14 input connector.
Mfr Part #:

DP4024N3M

Mfr Name: Artesyn Embedded Power
Artesyn Embedded Power
The Artesyn Embedded Power DP4024N3M is a 40W AC/DC desktop adapter providing a 24V output. It features Level V efficiency and an IEC 320-C14 input connector.
Stock on Request

DP4024N3M Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Automotive Grade
Cord Length
Current
Efficiency
Form
Height
Industrial Grade
Input Connector
Input Type
Length
Medical Grade
No Load Power Consumption
Operating Temperature
Output Connector
Polarization
Power (Watts)
Region Utilized
SVHC Present
Voltage
Width
View Similar Products (0)

DP4024N3M Description

Short technical summary and product information.

The Artesyn Embedded Power DP4024N3M is a 40W AC/DC desktop power adapter designed for ITE (Commercial) and Medical applications. It delivers a stable 24V output with a current rating of 1.67A.



This adapter meets Level V efficiency standards and operates within a temperature range of 0°C to 40°C. It features an IEC 320-C14 input connector and a standard barrel plug output with positive center polarization. The dimensions are 124.0mm x 61.0mm x 39.5mm.



Designed for international use, it has a low no-load power consumption of 300mW (Max). The input type is a cord, sold separately, with a cord length of 48" (1.22m). This adapter is classified as Desktop (Class I).



Environmental compliance includes RoHS3 compliance and MSL 1 Unlimited. REACH status is unaffected.

DP4024N3M Quick Information

Product Type: AC DC Desktop, Wall Adapter
Canonical Name: Artesyn Embedded Power DP4024N3M AC/DC Desktop Adapter
Subcategory: AC DC Desktop, Wall Adapter

DP4024N3M Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DP4024N3M Features

  • 40W AC/DC desktop power adapter.
  • 24V output voltage at 1.67A.
  • Level V energy efficiency rating.
  • IEC 320-C14 input connector.
  • Barrel plug output with positive center.

DP4024N3M Applications

  • Ideal for commercial ITE equipment.
  • Suitable for medical devices.
  • Use in networking and telecommunications.
  • Power for test and measurement instruments.

DP4024N3M FAQs

6 frequently asked questions generated from this part’s specifications.
What is the output voltage?

24V.

What is the power rating?

40W.

What efficiency level does it meet?

Level V.

What input connector does it use?

IEC 320-C14.

What output connector does it have?

Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm.

What is the operating temperature range?

0°C to 40°C.
