| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

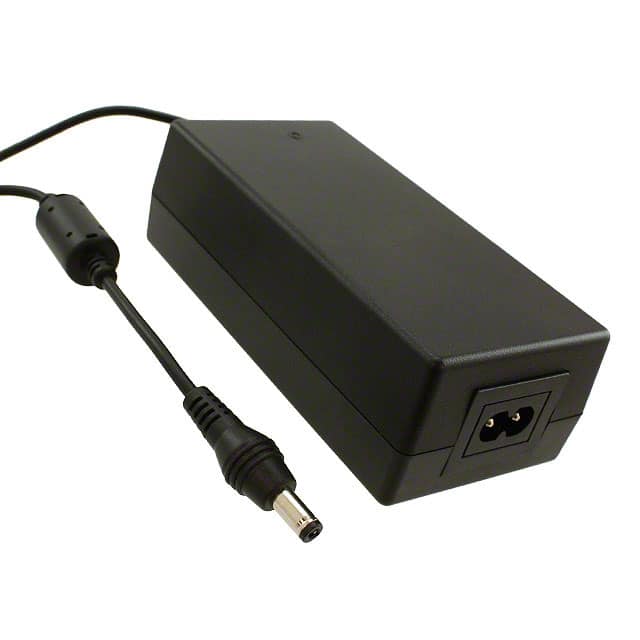

The Artesyn Embedded Power DP4024N2M is a 40W AC/DC desktop power adapter designed for international use. It provides a stable 24V output with a current rating of 1.67A.
This adapter features a Level V efficiency rating and operates within a temperature range of 0°C to 40°C. The input connector is an IEC 320-C8, and the output connector is a standard barrel plug (2.5mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization. The form factor is a Desktop (Class II) type.
Designed for applications including ITE (Commercial) and Medical, the DP4024N2M has a low no-load power consumption of 300mW maximum. It is compliant with RoHS3 standards and has an MSL of 1.
24V DC.
Desktop (Class II).
0°C to 40°C.
1.67A.
40W.
Level V.
