| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Form Factor | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Weight | |
| Width |

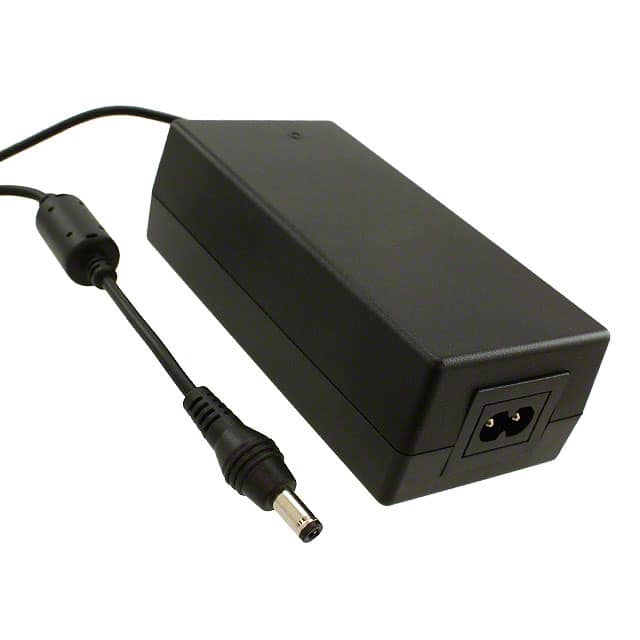

The Artesyn Embedded Power DP4015N2M is a versatile 40W AC/DC desktop adapter designed for international use. It provides a stable 15V output voltage at a maximum current of 2.67A, making it suitable for various commercial and medical applications.
This adapter features a compact desktop form factor (Class II) with dimensions of 124.0mm x 61.0mm x 39.5mm and weighs 250.84g. It operates within an input voltage range of 90 to 264 VAC and achieves Level V efficiency, ensuring minimal power consumption.
The DP4015N2M utilizes an IEC 320-C8 input connector and a standard barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 9.5mm). It is designed for operation in temperatures ranging from 0°C to 40°C and has a low no-load power consumption of 300mW maximum. Agency approvals include CB and CE, confirming its compliance with international safety standards.
The DP4015N2M adapter has an output voltage of 15V and a maximum output current of 2.67A.
The power rating of the DP4015N2M adapter is 40W.
The DP4015N2M adapter meets Level V efficiency.
The operating temperature range for the DP4015N2M is 0°C to 40°C.
The DP4015N2M adapter has CB and CE agency approvals.
The DP4015N2M uses an IEC 320-C8 input connector.
The dimensions of the DP4015N2M adapter are 124.0mm x 61.0mm x 39.5mm.
