| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

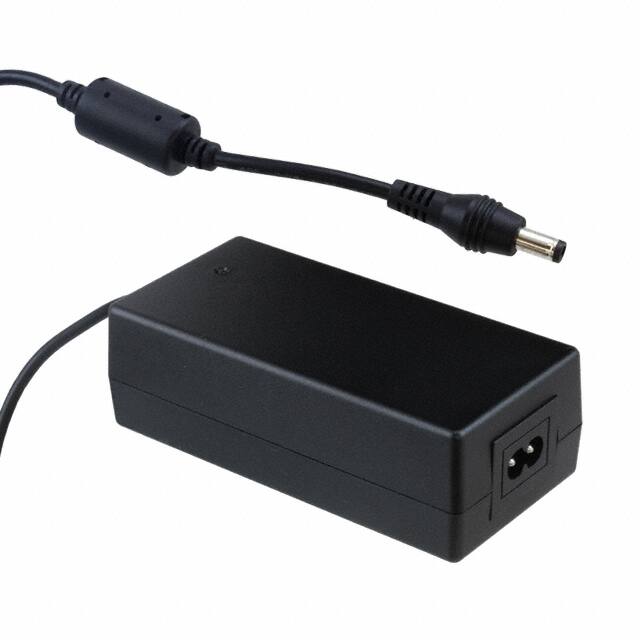

The DP4009N2M is an AC/DC desktop adapter manufactured by Artesyn Embedded Power. It delivers a regulated 9V DC output at 4.44A, providing 40W of power. The adapter features a Class II design (no ground pin) and is housed in a desktop form factor.
Input connection is via an IEC 320-C8 (figure-8) connector. Output is through a standard barrel plug with 2.5mm inner diameter and 5.5mm outer diameter, 9.5mm length. The adapter operates over a temperature range of 0°C to 40°C. It meets Level V efficiency standards and has a maximum no-load power consumption of 300mW.
This adapter is suitable for powering devices that require a 9V DC input at up to 4.44A. The desktop form factor allows for convenient placement near the powered equipment. The Class II construction eliminates the need for an earth connection.
9V.
4.44A.
40W.
0°C to 40°C.
IEC 320-C8.
Barrel plug, 2.5mm ID x 5.5mm OD x 9.5mm.
Level V.
