| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Voltage |

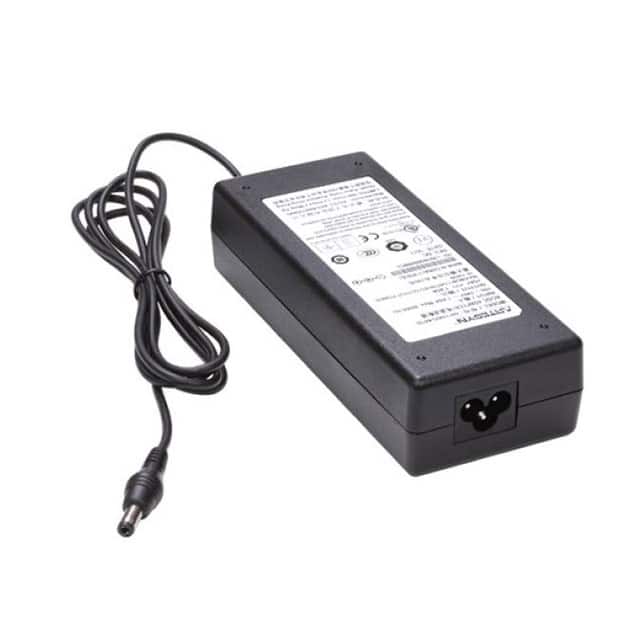

The Artesyn Embedded Power DP10054P3L is a 100 Watt freestanding external AC-DC power adapter designed for portable and desktop applications. It provides a flexible Power over Ethernet (POE) compliant power solution.
The adapter accepts a universal 90-264 Vac input and delivers a single, fully regulated 54 Vdc output capable of up to 1.85 A continuously. It boasts a typical full load efficiency of 87% and complies with DoE Level VI and EU CoC v5 Tier 2 efficiency requirements.
Key features include active power factor correction, universal AC input, overcurrent, overvoltage, and thermal protection. The unit has an IEC320 AC receptacle (type C6) and a built-in EMI filter. Safety approvals include UL, CSA, CB, PSE, CCC, CE, and TUV.
With dimensions of 156.0mm x 65.0mm x 37.2mm, the adapter is suitable for desktop use. It operates within a temperature range of -5°C to +45°C ambient and has a demonstrated MTBF of over 550,000 hours.
The DP10054P3L provides a single, regulated 54 Vdc output at a maximum load of 1.85 A.
The adapter accepts a wide input voltage range of 90 - 264 Vac.
The maximum power output for this adapter is 100 Watts.
The adapter complies with DoE Level VI and EU CoC v5 Tier 2 efficiency requirements.
It features an IEC 320 AC receptacle, 3 pin (type C6).
The operating temperature range is -5°C to +45°C ambient.
