| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,500 pcs
|
1500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Display Characters | |
| Display Type | |
| Features | |
| Impedance | |
| Measuring Range | |
| Measuring Type | |
| Mounting Type | |
| Number of Characters Per Row | |
| Panel Cutout Dimensions | |
| Power Consumption | |
| Termination Style | |
| Type | |
| Voltage |

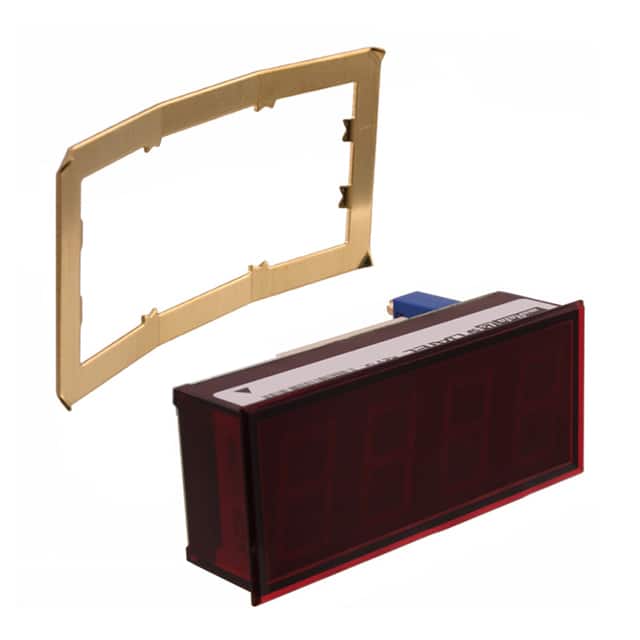

The Murata DMS-30PC-4/20S-24RL-C is a 3½ digit panel meter designed for 4-20mA current loop inputs. It features a large, easy-to-read 0.56" (14.2mm) red LED display. The meter operates with a wide input voltage range of 7.5 to 32VDC, making it suitable for various power supply configurations.
This panel meter offers a 4-20mA measuring range and includes features like DIP-switch selectable range and decimal point settings for user-friendly configuration. Adjustments for gain and offset are made with high-precision, 20-turn potentiometers. The unit utilizes screw-type terminal connections for both the current loop and power source, ensuring reliable connections.
Designed for panel mounting, the DMS-30PC-4/20S-24RL-C has specific cutout dimensions of 53.80mm x 22.30mm. It offers a low power consumption of 15mA from a +5V supply and has a 2V loop drop with 100Ω impedance. The rugged, vibration-resistant package is built for long-term reliability in industrial environments. A bezel assembly for moisture and dust resistance is available separately.
The measuring range is 4 to 20mA.
The operating voltage is between 7.5 and 32VDC.
It features a 0.56" (14.20mm) red LED display with 3.5 digits.
It is designed for panel mounting.
The loop drop is 2V with 100Ω impedance.
