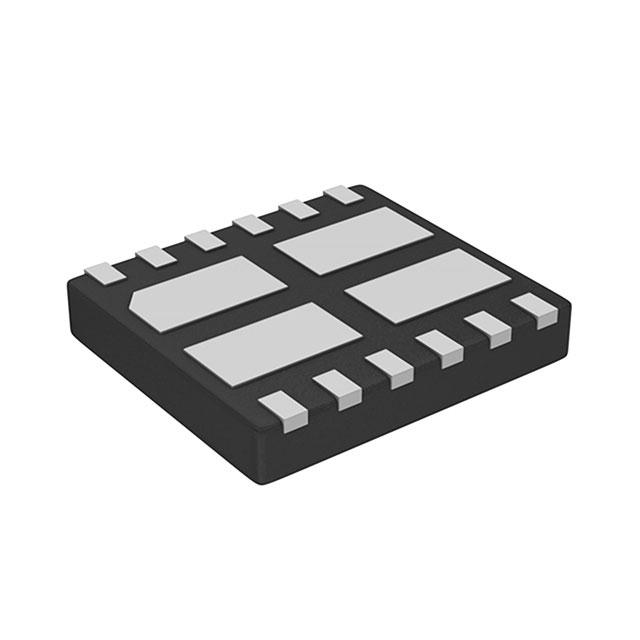

Mfr Part #:

DMHC10H170SFJ-13

Name: DMHC10H170SFJ-13
Brand: Diodes Incorporated
SKU: DMHC10H170SFJ-13

Mfr Name: Diodes Incorporated

Description:

MOSFET 2N/2P-CH 100V DFN5045-12

Stock on Request

DMHC10H170SFJ-13 Description

Short technical summary and product information.

MOSFET 2N/2P-CH 100V DFN5045-12

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Transistors - FETs, MOSFETs - Arrays
Manufacturer Name	Diodes Incorporated
Configuration	2 N and 2 P-Channel (Half Bridge)
Current	2.9A, 2.3A
Drain to Source Voltage (Vdss)	100V
Gate Charge (Qg) (Max) @ Vgs	9.7nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1167pF @ 25V
Mounting Type	Surface Mount
Operating Temperature	-55°C ~ 150°C (TJ)
Power	2.1W
Rds On (Max) @ Id, Vgs	160mOhm @ 5A, 10V
Supplier Device Package	V-DFN5045-12
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	3V @ 250µA
