| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Channel | |
| Channel Capacitance (CS(off), CD(off)) | |
| Charge Injection | |
| Crosstalk | |
| Current | |
| Lead Spacing | |
| Mounting Style | |
| Mounting Type | |
| Multiplexer | |
| Number of Circuits | |
| On | |
| Operating Temperature | |
| Power Dissipation | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Switch Circuit | |
| Switch Time (Ton, Toff) (Max) | |
| Tape & Reel | |
| Voltage |
The Vishay DG2730DN-T1-GE4 is a 2-port, Double Pole Double Throw (DPDT) analog switch designed for high-speed USB 2.0 signal switching applications. It offers a 900 MHz -3 dB bandwidth, ensuring efficient signal transmission.
This switch operates over a wide voltage range of 2.7 V to 5.5 V, making it suitable for various power supply configurations. Key electrical characteristics include a low on-resistance of typically 5.5 Ohm, low parasitic capacitance of 5.8 pF, and low bit-to-bit skew as low as 40 ps. It also provides protection against short-to-VBUS conditions on D+ / D- lines and has ESD tolerance exceeding 5.5 kV.

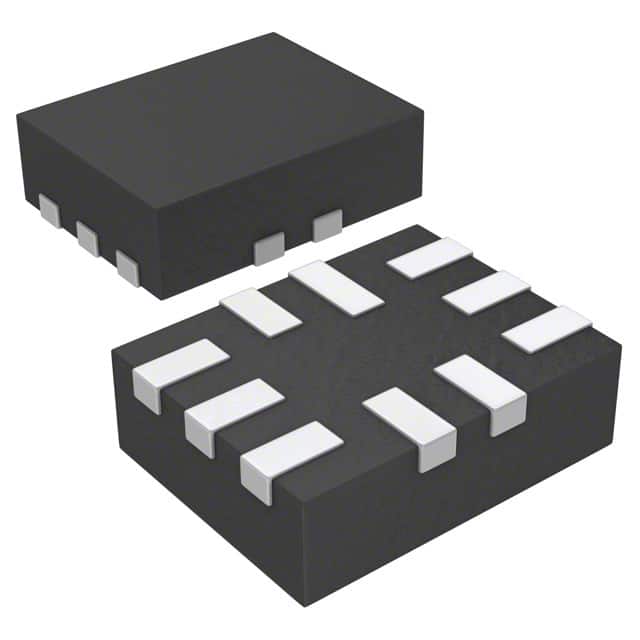

The DG2730DN-T1-GE4 is packaged in an ultra-small 10-miniQFN (1.4 mm x 1.8 mm x 0.55 mm) with surface mount mounting type. This compact form factor is ideal for portable high-speed mixed-signal switching applications.
This device is manufactured with lead (Pb)-free termination and is fully RoHS-compliant. It is designed for applications such as cellular phones, portable media players, PDAs, digital cameras, GPS devices, notebook computers, and set-top boxes.
The operating voltage range is 2.7 V to 5.5 V.
The DG2730DN-T1-GE4 is available in a 10-miniQFN (1.4x1.8) package.
The operating temperature range is -40°C to 85°C (TA).
Yes, the DG2730DN-T1-GE4 is RoHS3 compliant.
