| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
632 pcs
|
632 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Current Rating | |
| Fastening Type | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Storage Temperature | |
| Termination Style |

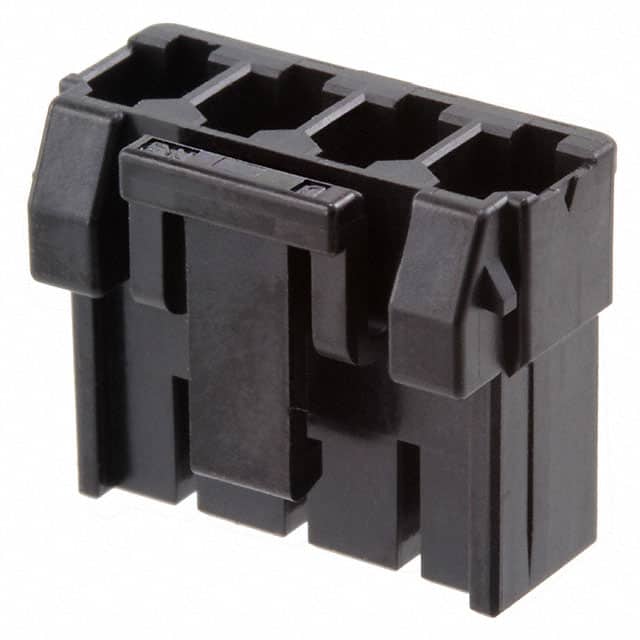

The Hirose Electric DF63-4S-3.96C is a 4 position, single row socket housing from the DF63 series of wire-to-board connectors. It features a 3.96mm pitch and is designed for free hanging (in-line) mounting with crimp termination. The housing is black and uses a latch lock fastening mechanism for secure mating.
This connector housing is rated for up to 15A when used with 16 AWG wire, making it suitable for internal power supply connections. The DF63 series includes features such as a tactile click locking mechanism to prevent incomplete mating, a structure to prevent incomplete insertion of crimp contacts, and keying options to prevent incorrect connections.
The operating temperature range is -55°C to 105°C. The housing accepts female socket contacts (sold separately).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.38 | $0.38 |
| 10+ | $0.33 | $0.33 |
| 25+ | $0.31 | $0.31 |
| 50+ | $0.29 | $0.29 |
| 100+ | $0.28 | $0.28 |
| 300+ | $0.26 | $0.26 |
| 500+ | $0.25 | $0.25 |
| 1,000+ | $0.24 | $0.24 |
| 2,500+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DF63-4S-3.96C has 4 positions in a single row.
The pitch is 3.96mm (0.156 inches).
The current rating is 15A when using 16 AWG wire.
It uses free hanging (in-line) mounting.
The operating temperature range is -55°C to 105°C.
