| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
194 pcs
|
194 pcs | On Request | 1 | On Request | On Request | 2009+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Storage Temperature |

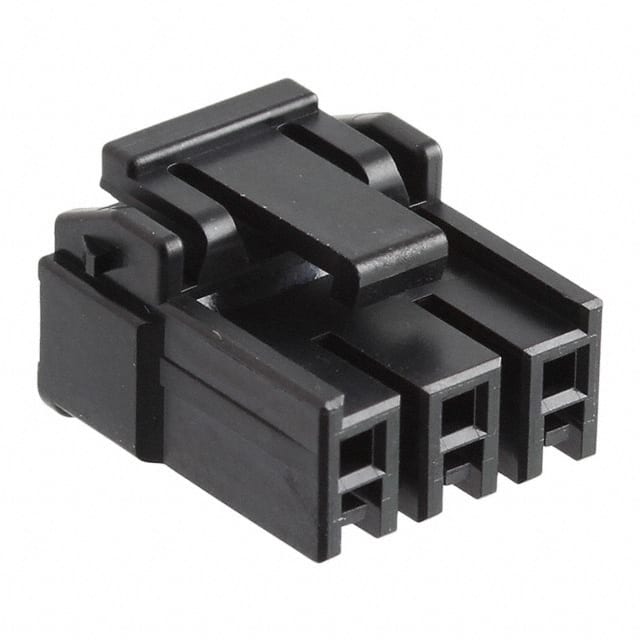

DF63-3S-3.96C is a 3-position rectangular connector housing from Hirose Electric, part of the DF63 series of wire-to-board connectors for internal power supplies. The socket housing accepts female socket contacts with crimp termination and is designed for free-hanging (in-line) mounting. With a 3.96mm pitch and latch lock fastening, it provides secure mating and a tactile click to prevent incomplete connection.
The housing is rated for operating temperatures from -55°C to 105°C and supports current up to 15A with 16 AWG wire (13A with 18 AWG, 11A with 20 AWG, 9A with 22 AWG). Its molded lance design prevents tangled wires during assembly, and the wall structure between contacts helps prevent short circuits. The DF63 series also features keying options to prevent incorrect mating between different pin counts.
This component is suitable for internal power supply connections in industrial equipment, automotive applications, and other wire-to-board interconnect needs. The free-hanging design allows flexible harness routing, while the latch lock ensures reliable retention.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.36 | $0.36 |
| 10+ | $0.30 | $0.30 |
| 25+ | $0.28 | $0.28 |
| 50+ | $0.27 | $0.27 |
| 100+ | $0.26 | $0.26 |
| 300+ | $0.24 | $0.24 |
| 500+ | $0.23 | $0.23 |
| 1,000+ | $0.22 | $0.22 |
| 2,500+ | $0.21 | $0.21 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 3 positions in a single row.
The pitch is 3.96mm (0.156 inch).
The current rating depends on wire gauge: 15A at 16 AWG, 13A at 18 AWG, 11A at 20 AWG, and 9A at 22 AWG.
It is a free-hanging (in-line) socket housing with latch lock fastening.
The operating temperature range is -55°C to 105°C.
Female socket contacts with crimp termination.
