| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
54,000 pcs
|
54000 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | 2026-05-08 03:15:20 |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

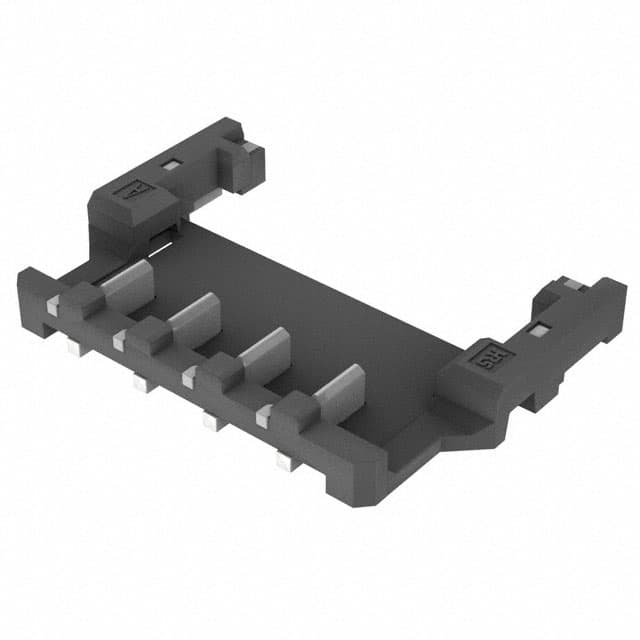

The Hirose DF58-4P-1.2V(21) is a 4-position, single-row surface mount header designed for board-to-cable/wire applications. It features a 1.2mm pitch, male blade contacts made of copper alloy with tin plating, and an unshrouded housing molded from black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. The connector includes a swing lock fastening type for secure mating and a solder retention feature to aid in assembly stability.
Rated for 100VDC, the DF58-4P-1.2V(21) operates over a temperature range of -55°C to 85°C. The contacts are terminated via solder to the PCB, and the component is supplied in tape and reel packaging suitable for automated assembly. The insulation height is 2.41mm, and all 4 positions are loaded.
This header is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited), making it suitable for lead-free soldering processes. It is commonly used in compact electronic devices where space is at a premium and a reliable locking mechanism is required.
4 positions.
1.2mm.
100VDC.
Surface mount.
-55°C to 85°C.
Liquid Crystal Polymer (LCP).
Yes, RoHS3 compliant.
