| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
748 pcs
|
748 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Voltage |

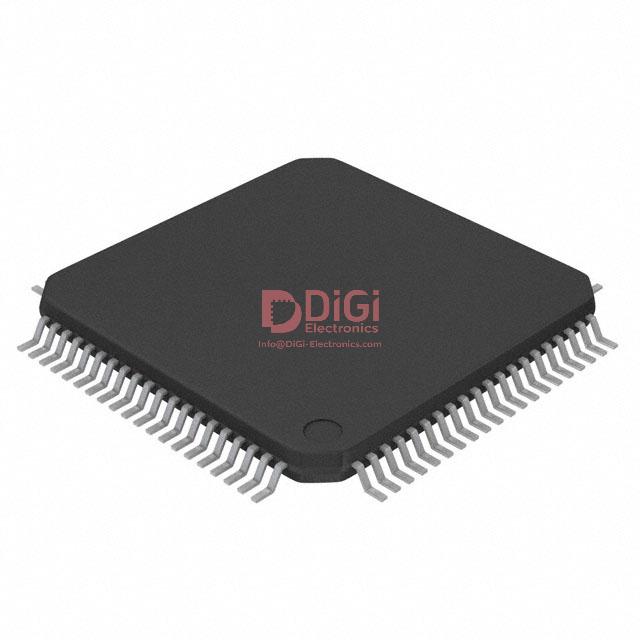

This Renesas DF3052BX25V is a 16-bit microcontroller belonging to the H8/300H core family. It offers 512KB of FLASH program memory and 8KB of RAM, with a core size of 16-Bit. The device operates at a speed of 25MHz and supports a voltage range of 4.5V to 5.5V.
Key connectivity options include SCI and SmartCard interfaces. The microcontroller is equipped with peripherals such as DMA, POR, PWM, and WDT, and provides 70 I/O lines. It also features internal oscillator type and includes data converters (A/D 8x10b; D/A 2x8b).
The DF3052BX25V is designed for surface mount applications and comes in a 100-TQFP package. It operates within a temperature range of -20°C to 75°C (TA). This component is suitable for various embedded system designs requiring a robust 16-bit processing core with ample memory and peripheral support.
The program memory size is 512KB (512K x 8).
The RAM size is 8K x 8.
The operating voltage is between 4.5V and 5.5V.
The operating temperature range is -20°C to 75°C (TA).
It is supplied in a 100-TQFP package.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
