| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CSA File Number | |
| Color | |
| Connector Type | |
| Contact Resistance | |
| Contact Termination | |
| Contact Type | |
| Current Rating (Typical @ AWG22-24) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Voltage Rating AC | |
| Wire size | |
| Withstanding Voltage | |
| ul_file_number |

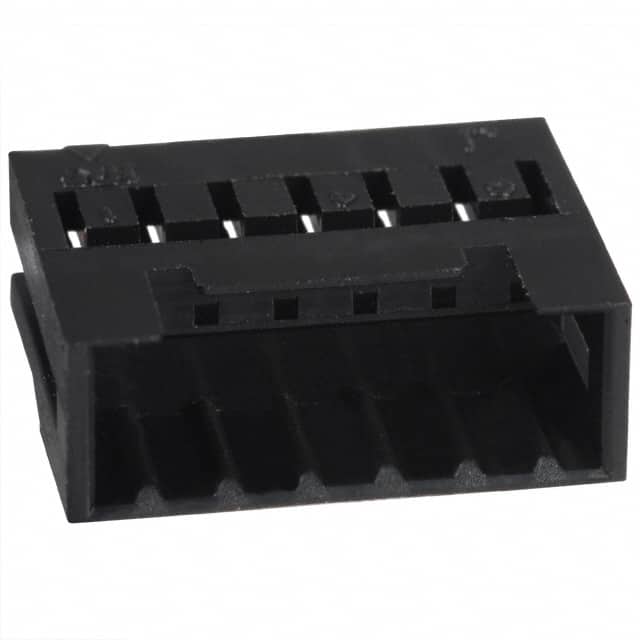

The DF3-6EP-2C is a plug housing from Hirose Electric's DF3 series. It accommodates 6 male pin contacts in a single row with 2.00mm pitch. Designed for crimp termination, it supports wire sizes 22-28 AWG.
The housing is black and rated for operating temperatures from -30°C to +85°C. Electrical ratings include 3A current (AWG22-24) and 100V AC voltage. It has insulation resistance of 1000 MΩ minimum and withstanding voltage of 650V AC. Contact resistance is 30 mΩ maximum.
The housing is UL (E52653) and CSA (LR95109) approved. It is suitable for business equipment like copiers and printers.
6 positions.
2.00mm.
3A for AWG22-24 wires.
100V AC.
Free hanging (in-line).
AWG 22 to 28.
-30°C to +85°C.
