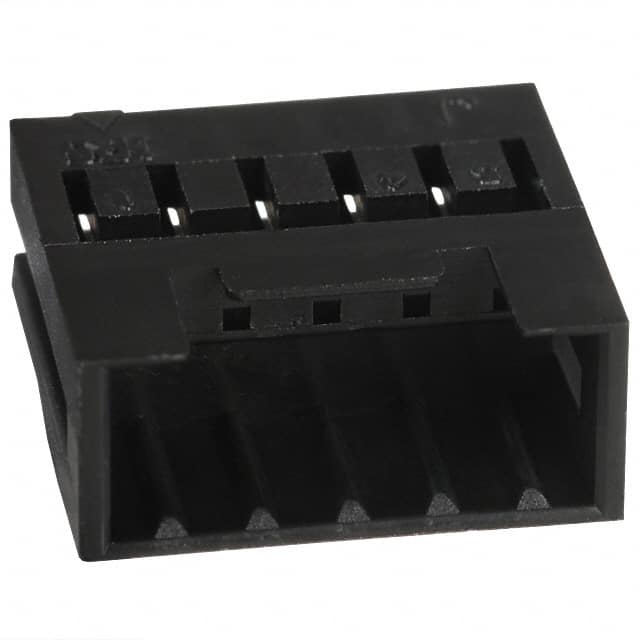

The Hirose Electric DF3-5EP-2C is a 5-position, single-row, 2.00mm pitch crimp plug housing from the DF3 series. It features a black color and a free hanging (in-line) mounting type, making it suitable for wire-to-board or in-line connections. The housing accepts male pin contacts with a crimp termination style.
Electrical specifications include a current rating of 3A per contact for AWG 22-24 wire, 2A for AWG 26, and 1A for AWG 28. The voltage rating is 100V AC. The product has a contact resistance of 30mΩ maximum and an insulation resistance of 1000MΩ minimum. The operating temperature range is -30°C to +85°C per the datasheet.
The DF3 series is designed for low profile board-to-cable and cable-to-cable applications, commonly used in business equipment such as copiers and printers. The housing supports wire gauge range AWG 22 to 28. The product is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited).
It has 5 positions in a single row.
The pitch is 2.00mm (0.079 inches).
The current rating is 3A per contact for AWG 22-24 wire, 2A for AWG 26, and 1A for AWG 28.
The voltage rating is 100V AC.
Free hanging (in-line) mounting.
The housing accepts AWG 22 to 28 wire.
Per the datasheet, -30°C to +85°C. Note: existing database lists -55°C to 105°C; verification recommended.
