| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
105 pcs
|
105 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch |

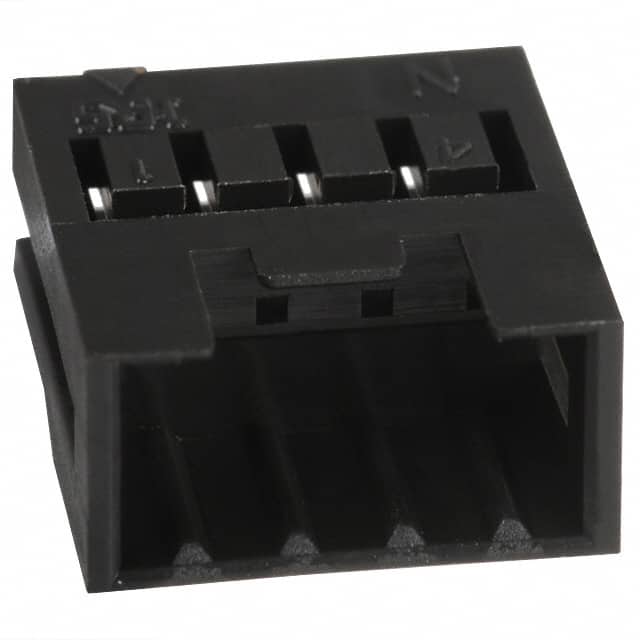

The Hirose Electric DF3-4EP-2C is a rectangular connector housing from the DF3 series. It is a 4-position plug designed for use with male pin contacts. The housing has a single row configuration with a 2.00mm pitch between contacts.
This connector housing uses crimp termination for the contacts, and is designed for free hanging (in-line) mounting. The housing body is black in color. It supports an operating temperature range of -55°C to 105°C.
As an unpopulated housing, it accepts separately ordered crimp contacts. This allows flexibility in wire-to-board or wire-to-wire interconnection applications within the DF3 connector system. No current or voltage rating data is available from the provided specifications.
It has 4 positions in a single row.
The pitch is 2.00mm (0.079 inches).
It is free hanging (in-line) mounting.
It uses crimp termination.
It supports -55°C to 105°C.
The housing is black.
