| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Resistance | |
| Contact Termination | |
| Contact Type | |
| Current Rating | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Safety Standard | |
| Voltage Rating | |
| Withstanding Voltage |

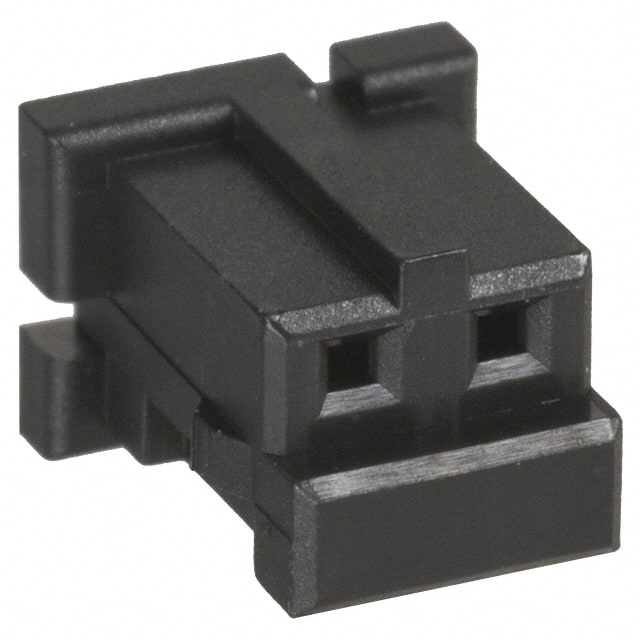

The DF3-2S-2C is a 2-position receptacle housing from Hirose Electric's DF3 series, designed for discrete wire connections. It accommodates female socket contacts with crimp termination and is intended for free hanging (in-line) mounting. The housing is black and has a single row with a 2.00mm pitch.
Electrical ratings include a maximum current of 1A (for AWG 24 to 28 wire) and a maximum voltage of 30V AC. The operating temperature range is -55°C to 105°C (datasheet specifies -30°C to +85°C; verify with manufacturer). Insulation resistance is 1000 MΩ minimum at 500V DC, withstanding voltage is 650V AC for 1 minute, and contact resistance is 30 mΩ maximum at 100mA.
The housing is RoHS3 compliant and carries UL E52653 and CSA LR95109 safety certifications. It is suitable for business equipment such as copiers and printers.
The DF3-2S-2C has 2 positions in a single row.
The pitch is 2.00mm (0.079 inches).
The maximum current rating is 1A for AWG 24 to 28 wire.
The maximum voltage rating is 30V AC.
It uses free hanging (in-line) mounting.
The operating temperature range is -55°C to 105°C (datasheet specifies -30°C to +85°C; verify with manufacturer).
Yes, it is RoHS3 compliant.
