| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Mated Stacking Heights | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

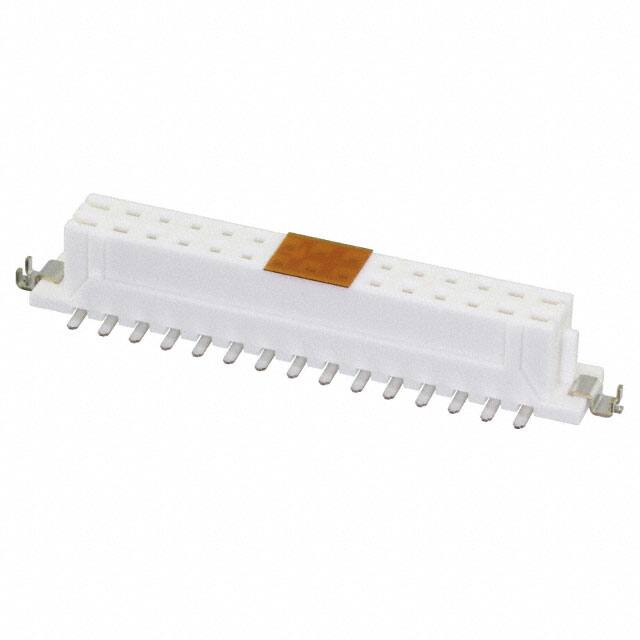

The Hirose DF11CZ-30DS-2V(22) is a 30-position receptacle connector from the DF11 series, featuring a 2.00mm pitch and 2 rows of female socket contacts. It is designed for surface mount soldering termination and supports board-to-board or cable applications.
This connector is rated for 2A per contact and 250V, with an operating temperature range of -30°C to 85°C. The contacts are finished with tin and have a thickness of 1.00µm. The beige insulation has a height of 5.95mm and supports mated stacking heights of 7.55mm and 8.2mm.
The housing includes features such as pick and place capability and solder retention for automated assembly. The fastening type is a friction lock for secure mating. The material flammability rating is UL94 V-0.
It has 30 positions arranged in 2 rows.
The pitch is 2.00mm (0.079 inches).
The current rating is 2A per contact.
The voltage rating is 250V.
It uses surface mount (SMD) with solder termination.
The operating temperature range is -30°C to 85°C.
The contact finish is tin with a thickness of 1.00µm.
