| Category | |
| Manufacturer Name | |
| CSA File Number | |
| Color | |
| Connector Type | |
| Contact Resistance | |
| Contact Termination | |
| Contact Type | |
| Current Rating (Maximum @ Crimping, AWG #28) | |
| Current Rating (Maximum @ Crimping, AWG #30) | |
| Current Rating (Maximum @ Crimping, AWG 22-26) | |
| Current Rating (Maximum @ Insulation Displacement, AWG #26) | |
| Humidity (Steady state) | |
| Insertion/Extraction Force | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Humidity | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Storage Temperature | |
| Temperature Cycle | |
| Vibration | |
| Voltage Rating (Maximum @ Crimping) | |
| Voltage Rating (Maximum @ Insulation Displacement) | |
| Wire Size Range | |
| Withstanding Voltage | |
| ul_file_number |

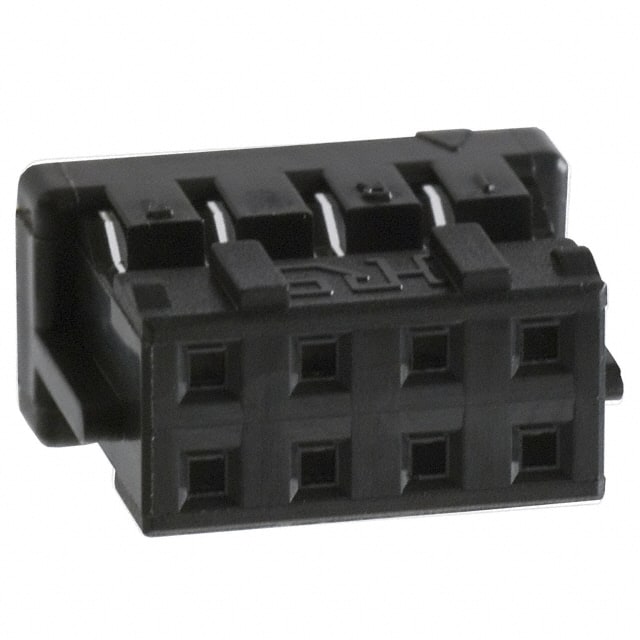

The DF11-8DS-2C is a black, 8-position, 2-row receptacle housing from the HIROSE DF11 series, featuring a 2.00mm pitch and 2.00mm row spacing. It is designed for free hanging (in-line) mounting and uses crimp-type female socket contacts. The housing supports wire sizes from AWG 22 to 30. Electrical ratings vary with wire size and termination method: for crimp termination, current rating is 2A for AWG22-26, 1A for AWG28, and 0.5A for AWG30, with voltage rating of 250V AC. For insulation displacement termination (AWG26), current is 1A and voltage is 100V AC. The connector meets UL (E52653) and CSA (LR95109) safety standards. Environmental specifications include an operating temperature range of -30°C to 85°C, storage temperature of -10°C to 60°C, and humidity ranges. It is suitable for wire-to-board and in-line cable harness applications in office equipment such as copiers and printers. The housing does not include contacts; these must be ordered separately.
The DF11-8DS-2C has 8 positions arranged in 2 rows.
The pitch is 2.00mm, and row spacing is also 2.00mm.
Current rating depends on wire size and termination. For crimp: AWG22-26 2A, AWG28 1A, AWG30 0.5A. For insulation displacement AWG26: 1A.
Voltage rating is 250V AC for crimp termination and 100V AC for insulation displacement termination.
The connector is designed for Free Hanging (In-Line) mounting.
The housing accepts wire sizes from AWG 22 to 30.
The operating temperature range is -30°C to 85°C.
