| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
53 pcs
|
53 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
18 pcs
|
18 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CSA | |
| CSA File Number | |
| Color | |
| Connector Type | |
| Contact Resistance | |
| Contact Termination | |
| Contact Type | |
| Current Rating (Maximum @ Wire Size: AWG 22-26, Crimping) | |
| Current Rating (Maximum @ Wire Size: AWG 28, Crimping) | |
| Current Rating (Maximum @ Wire Size: AWG 30, Crimping) | |
| Insertion/Extraction Force | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Humidity Range | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Row Spacing | |
| Storage Humidity Range | |
| Storage Temperature Range | |
| Termination Style | |
| UL | |
| Voltage Rating (Maximum @ Crimping) | |
| Voltage Rating (Maximum @ Insulation Displacement) | |
| Wire Size Range | |
| Withstanding Voltage | |
| ul_file_number |

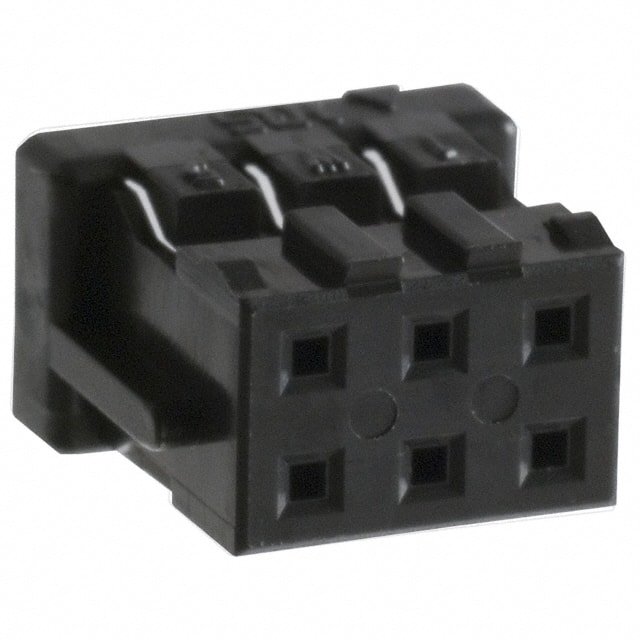

The DF11-6DS-2C is a 6-position rectangular connector housing from Hirose Electric's DF11 series. It is a receptacle type housing designed for female socket contacts, with a 2.00mm pitch and 2 rows. This housing is free hanging (in-line) and accepts crimp termination contacts, supporting wire sizes from AWG22 to AWG30.
Key electrical specifications for the mated connector include a maximum current rating of 2A for AWG22-26, 1A for AWG28, and 0.5A for AWG30. The voltage rating is 250V AC for crimp termination and 100V AC for insulation displacement. The housing has a withstanding voltage of 650V AC and a minimum insulation resistance of 1000MΩ. Operating temperature range is -30°C to 85°C.
The housing is made of black plastic and complies with UL (E52653) and CSA (LR95109) standards. It is suitable for use in business equipment such as copiers and printers. The DF11 series offers space-saving design with double rows in a 5mm width.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.14 | $0.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions in 2 rows.
2.00mm (0.079 inches).
Depends on wire size: 2A for AWG22-26, 1A for AWG28, 0.5A for AWG30 (crimp).
250V AC for crimp termination, 100V AC for insulation displacement.
Free hanging (in-line).
-30°C to 85°C.
AWG22 to AWG30.
