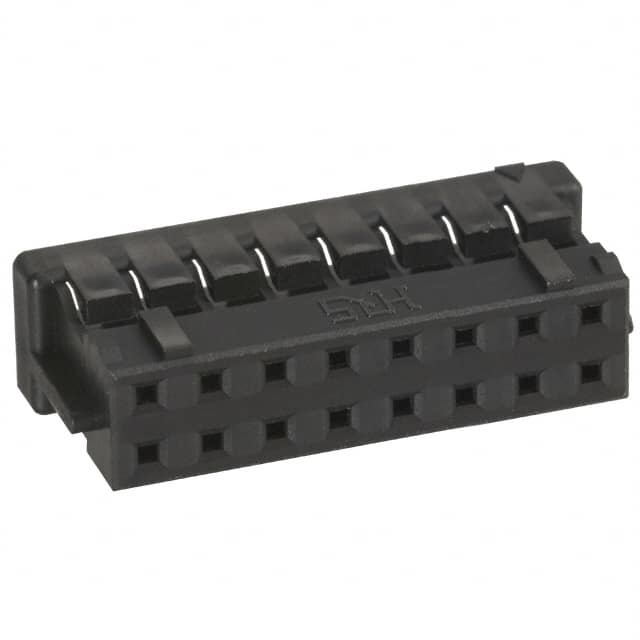

DF11-16DS-2C Hirose DF11 series 16 position 2.00mm pitch receptacle housing for crimp termination. Free hanging in-line mounting, black housing.
Mfr Part #:

DF11-16DS-2C

Available from 3 distributors
Mfr Name: Hirose Electric
Hirose Electric
Hirose DF11 series 16 position 2.00mm pitch receptacle housing for crimp termination. Free hanging in-line mounting, black housing.
✓ Total Stock: 194 pcs

DF11-16DS-2C Available from 3 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DF11-16DS-2C Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Type
Contact Resistance
Contact Termination
Contact Type
Insulation Resistance
Mounting Type
Number of Positions
Number of Rows
Operating Temperature
Operating Temperature Range
Pitch
Row Spacing
Termination Style
Withstanding Voltage
View Similar Products (0)

DF11-16DS-2C Description

Short technical summary and product information.

The DF11-16DS-2C is a 16 position receptacle housing from Hirose Electric's DF11 series of 2.00mm pitch double-row connectors. This housing accepts female socket contacts and supports crimp termination for wire sizes AWG22 to AWG30. It features a free hanging (in-line) mounting style and a black housing.



Designed for space-saving board layouts, the DF11 series condenses double rows of 2mm pitch contacts within a 5mm width. The housing includes a simple lock mechanism and ribs to prevent contact mis-insertion. Operating temperature range is -30°C to 85°C.



Electrical performance depends on the mated connector assembly. For crimp termination, the current rating is 2A for AWG22-26, 1A for AWG28, and 0.5A for AWG30. Voltage rating is 250V AC for crimp termination. Contact resistance is 30mΩ maximum at 100mA. Insulation resistance is 1000MΩ minimum at 500V DC.

DF11-16DS-2C Quick Information

Product Type: Rectangular Connector Housing
Series: DF11
Canonical Name: DF11 Series 16 Position 2.00mm Pitch Receptacle Housing
Subcategory: Rectangular Connector Housings

DF11-16DS-2C Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DF11-16DS-2C Features

  • 16 position 2.00mm pitch receptacle housing.
  • Free hanging in-line mounting style.
  • Accepts female socket crimp contacts.
  • Rated for 2A maximum with AWG22-26 wire.
  • UL and CSA safety standard recognized.

DF11-16DS-2C Applications

  • Used in business equipment like copiers and printers.
  • Suitable for wire-to-board cable harness assemblies.
  • Ideal for space-constrained board designs.
  • Supports multi-signal connections in compact layouts.

DF11-16DS-2C FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the DF11-16DS-2C have?

16 positions arranged in 2 rows.

What is the pitch of the DF11-16DS-2C?

2.00mm (0.079 inches).

What is the current rating for this connector housing?

The current rating depends on wire size and termination. For crimp termination: 2A for AWG22-26, 1A for AWG28, 0.5A for AWG30. For insulation displacement termination with AWG26: 1A.

What is the voltage rating for the DF11-16DS-2C?

250V AC for crimp termination, 100V AC for insulation displacement termination.

What mounting type does this housing use?

Free hanging (in-line) mounting.

What wire sizes are compatible with this housing?

AWG22 to AWG30.

What is the operating temperature range?

-30°C to 85°C.
