| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Allowable Operation Temperature | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Filter Type | |
| Fuse Holder | |
| Fuse Holder, Drawer | |
| Housing Material | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Panel Thickness (max) | |
| Protection Class | |
| Switch Features | |
| Termination | |
| Voltage Rating | |
| Voltage Rating (Nominal @ UL, CSA) | |
| current_rating (Nominal @ IEC) | |
| current_rating (Nominal @ UL/CSA) | |
| dielectric_strength (Minimum @ 1 min/50 Hz) | |
| voltage_rating (Nominal @ IEC) |

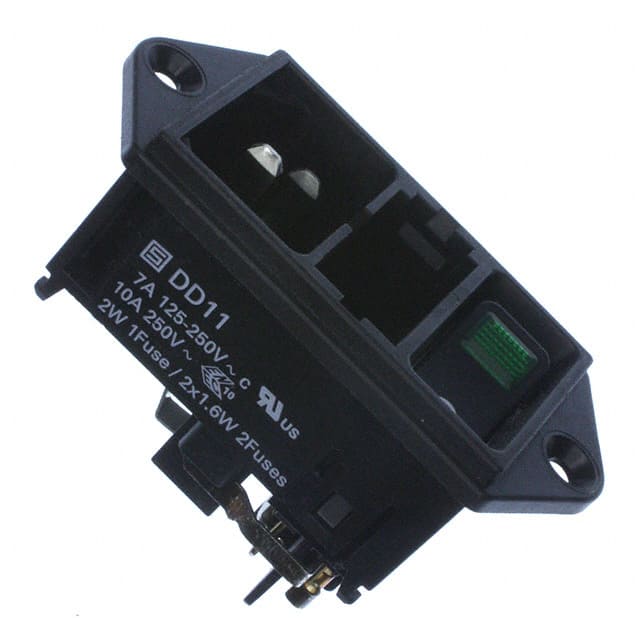

The Schurter DD11.0114.1110 is a compact power entry module combining an IEC 320-C14 appliance inlet, a 2-pole illuminated on-off switch, and a fuseholder for 5x20mm fuses (1- or 2-pole, drawer sold separately). It is rated for 10A at 250VAC under both IEC and UL/CSA standards, making it suitable for a wide range of commercial and industrial equipment.
This module is designed for panel mount screw-on installation with a maximum panel thickness of 8mm. It features quick connect terminals (0.189" / 4.8mm) for easy wiring. The housing is made of black thermoplastic with a UL94 V-0 flammability rating, ensuring safety in high-temperature environments. The front side offers IP40 protection against solid objects.
Electrical characteristics include a dielectric strength greater than 2.5kVAC between line and neutral, and greater than 3kVAC between line/neutral and protective earth. The operating temperature range is -25°C to 85°C. The module meets protection class I requirements per IEC 61140 and is suitable for use in equipment per IEC/UL 62368-1.
The current rating is 10A at 250VAC under both IEC and UL/CSA standards.
It uses panel mount with flange, screw-on from the front side, for panel thickness up to 8mm.
It includes a fuseholder for 5x20mm fuses (1- or 2-pole), but the fuse drawer is sold separately and fuses are not included.
The allowable operating temperature range is -25°C to 85°C.
The front side is rated IP40 according to IEC 60529.
