| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | 1809 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Features | |
| Filter Type | |
| Fuse Holder, Drawer | |
| Fuse Size | |
| Housing Material | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Switch Features | |
| Termination | |
| Termination Style | |
| Voltage Rating |

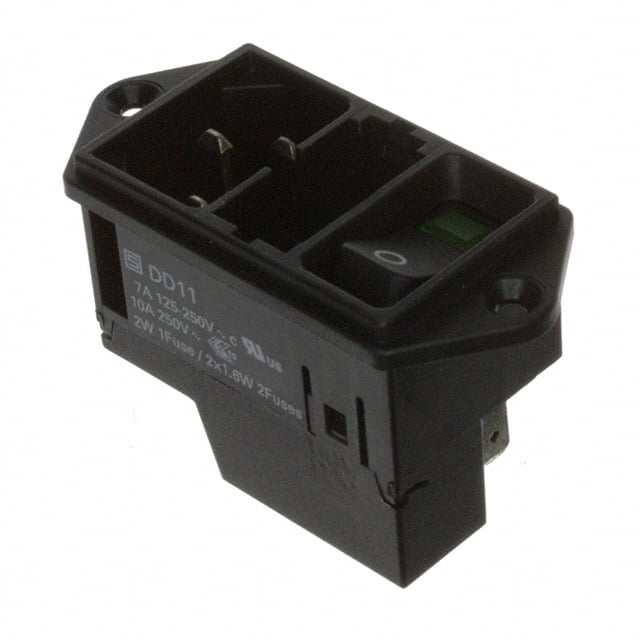

The DD11.0114.1111 is a power entry module (PEM) from Schurter Inc., designed as an IEC 320-C14 appliance inlet. It integrates a 2-pole illuminated on-off switch and a fuseholder for 5x20mm fuses (fuse drawer sold separately). This module is unfiltered and intended for commercial applications.
Rated for 10A at 250VAC (IEC/UL), it features quick connect terminals (0.189" / 4.8mm) and panel mount with screw-on mounting up to 8mm panel thickness. The housing is black thermoplastic with UL94 V-0 flammability rating. Protection class I according to IEC 61140. IP40 front side protection.
The module includes a V-Lock notch for secure cord retention. It meets glow wire test requirements per IEC 60695-2-11/12/13 and is suitable for use in equipment per IEC/UL 62368-1. Operating temperature range is -25°C to 85°C. Dielectric strength is 2.5kVAC between L-N and 3kVAC between L/N-PE.
Mounting is via front-side screw-on, with a maximum torque of 0.5 Nm. The fuseholder category is PC2 per IEC 60127-6. This product is RoHS3 and REACH unaffected compliant. Approval agencies include cULus and ENEC.
The module is rated for 10A at 250VAC (IEC/UL).
The voltage rating is 250VAC.
It uses panel mount with flange, screw-on mounting from the front side.
The module has a fuseholder for 5x20mm fuses, but the fuse and fuse drawer are sold separately.
The operating temperature range is -25°C to 85°C.
It is approved by cULus and ENEC.
The housing material is UL94 V-0 rated.
