| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
483 pcs
|
483 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Flange Feature | |
| Hardware | |
| Insulator Color | |
| Insulator Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Salt Spray Test Duration | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Wire Gauge |

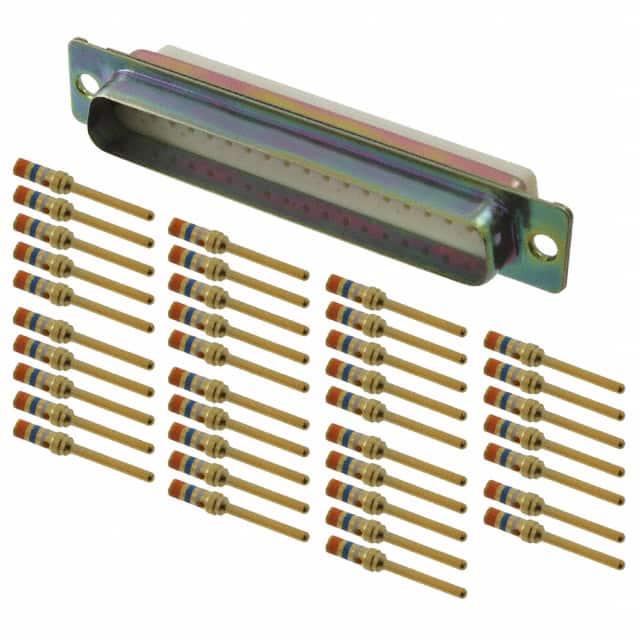

The ITT Cannon DCMAM-37P is a 37-position D-Sub plug connector designed for reliable signal transmission in demanding environments. This connector uses male pins with a gold over nickel contact finish (50 µin) for low contact resistance and corrosion resistance. It is rated for 7.5A maximum current and withstands 1000 VAC dielectric strength at sea level. The operating temperature range extends from -55°C to +150°C, making it suitable for harsh industrial and aerospace applications.
The connector features a steel shell with yellow chromate plated zinc finish, providing durability and salt spray resistance (48 hours standard, 96 hours for stainless steel). The insulator is made of thermoplastic PCT material with UL94 V-0 flammability rating and white color. The hardware includes 0.120 inch (3.05 mm) through hole options for panel mounting.
Termination is via crimp contacts, accepting wire gauges from 20 AWG to 28 AWG. The connector has a mating cycle life of 500 cycles and a maximum contact resistance of 10 mOhm. The shell size is 4 (DC, C) with a 2-row arrangement.
This D-Sub connector is part of the D*MA series and is designed for panel mount applications. The flange feature is housing/shell unthreaded. It is suitable for use in data communication, industrial control, and other interconnect systems requiring high reliability.
| Qty | Low | High |
|---|---|---|
| 1+ | $123.96 | $123.96 |
| 10+ | $105.37 | $105.37 |
| 25+ | $98.78 | $98.78 |
| 50+ | $94.07 | $94.07 |
| 100+ | $89.59 | $89.59 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DCMAM-37P has 37 positions arranged in 2 rows.
The maximum current rating is 7.5 A.
It is designed for panel mount with a housing/shell unthreaded flange feature.
The operating temperature range is -55°C to +150°C.
The maximum contact resistance is 10 mOhm.
The connector accepts wire gauges from 20 AWG to 28 AWG.
It supports 500 mating cycles.
