| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Output Connector | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Voltage | |
| Width |

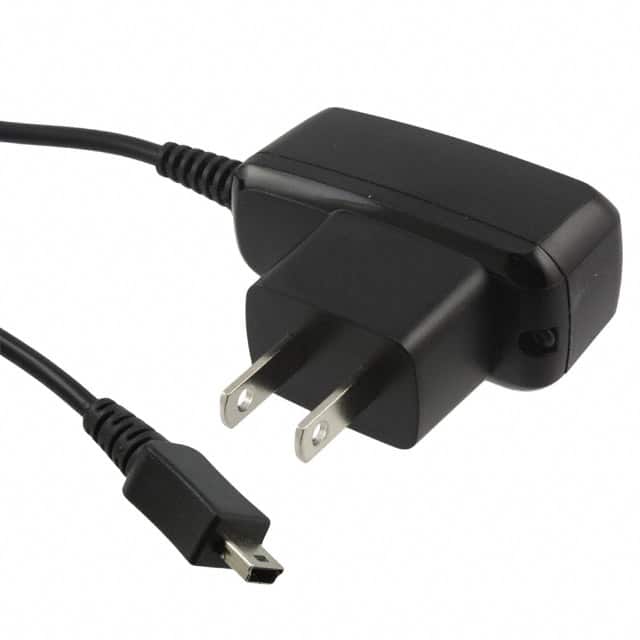

The Artesyn Embedded Power DCH3 series offers 3-watt plug-in wall-mount AC-DC power adapters designed to meet Level VI efficiency standards. This model, DCH3-050US-0005, features a compact, slim width design that does not block adjacent AC outlets. It accepts a wide 100-240 Vac input and provides a regulated 5 Vdc output capable of delivering up to 0.55 amp.
Key electrical specifications include a 47-63 Hz input frequency, 5V output voltage (4.75-5.25V range), and a maximum power of 3W. The adapter includes overload and short circuit protection with auto-recover functionality. It also features a hold-up time of 25 ms typical at full load and 115 Vac input.
Environmental specifications include an operating temperature range of 0°C to 45°C ambient and a storage temperature range of -20°C to +70°C. The adapter is designed to meet EMI/RFI standards such as FCC Part 15, Subpart B Class B and EN55022 Class B. The safety ground leakage current is rated at 10 μA at 230 Vac input.
This specific model comes with a NEMA 1-15P input connector for North America and a USB Mini connector on its 59-inch (1.50m) output cable. It is suitable for ITE (Commercial) applications and is certified by CB and CE.
The adapter provides a regulated 5 Vdc output, with a range of 4.75 to 5.25 V.
The maximum power output is 3 Watts.
It can supply a maximum current of 0.55 Amps.
The adapter can operate in ambient temperatures from 0°C to 45°C.
It uses a NEMA 1-15P input connector, suitable for North America.
The output connector is a USB Mini type.
Yes, this adapter has been upgraded to meet Level VI efficiency requirements.
