| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Voltage | |
| Width |

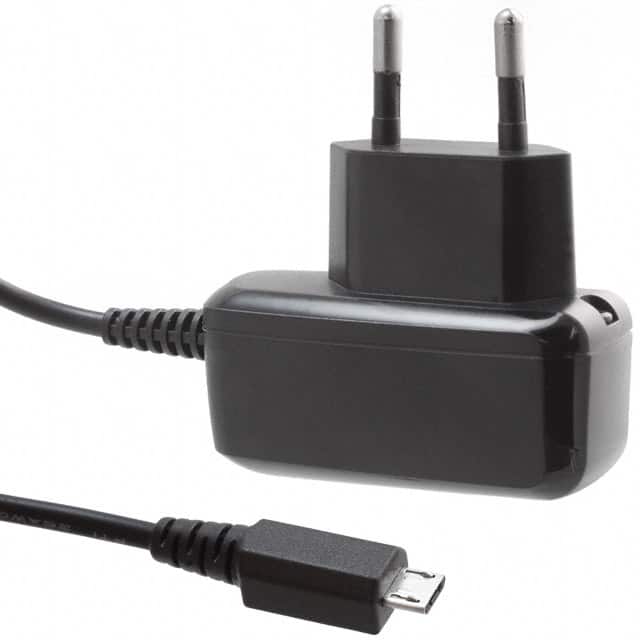

This Artesyn Embedded Power DCH3 series AC-DC power adapter delivers 3 watts of total power with a regulated 5 Vdc output. It features a universal AC input range of 100-240 Vac and meets Level VI efficiency standards. The adapter is designed for ITE (Commercial) applications and includes overload and short circuit protection. Its compact, wall-mount design with a CEE 7/16 input connector and a USB Micro output connector makes it suitable for various electronic devices.
The DCH3-050EU-0006 operates within an ambient temperature range of 0°C to 45°C and has a storage temperature range of -20°C to +70°C. It complies with safety standards such as CB and CE. The adapter provides a constant voltage, constant current output and has a hold-up time of 25 ms typical at full load. Its dimensions are 58.0mm in length, 26.1mm in width, and 45.8mm in height, with a cord length of 1.50m.
Key electrical specifications include an input range of 100-240 Vac and a frequency of 47-63 Hz. The output voltage is 5V with a maximum power of 3W and a maximum load current of 0.55A. It also features built-in EMI filtering compliant with CISPR 22 Class B standards. The adapter is designed for wall mounting and is classified as Class II.
100-240 Vac.
Wall Mount (Class II).
0°C to 45°C.
5 V (4.75-5.25 V).
Level VI.
Micro USB 2.0 or Mini USB 2.0 depending on suffix.
CEE 7/16 (European plug).
