| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Form | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Medical Grade | |
| Military Grade | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Weight |

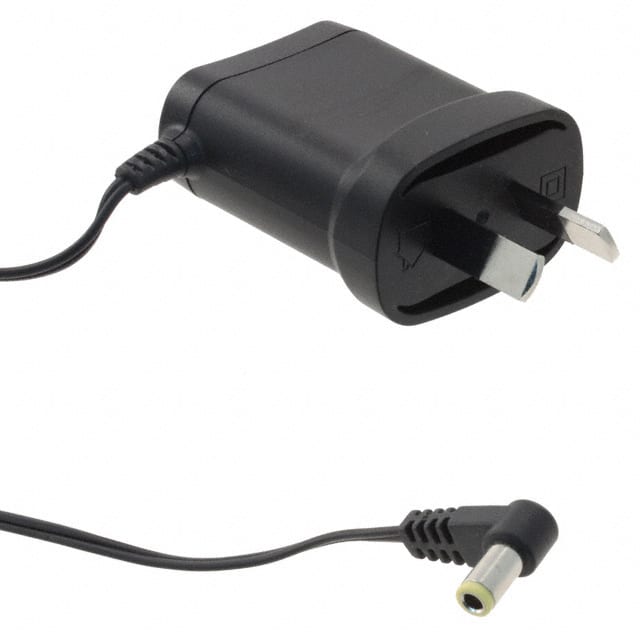

This AC/DC wall mount adapter from Artesyn Embedded Technologies, part number DCH2-050AU-0001, provides a 6.5V output with a maximum current of 300mA, delivering up to 2W of power. It is designed for ITE (Commercial) applications and operates within an input voltage range of 90 to 264 VAC.
The adapter features a fixed blade input connector compatible with AS 3112 standards and is designed for the Australian region. The output is delivered via a barrel plug with specific dimensions (2.5mm I.D. x 5.5mm O.D. x 9.5mm) and positive center polarization. Its compact dimensions are 38.1mm x 26.0mm x 44.4mm, making it suitable for various installations.
With approvals from CB and CE, this adapter is suitable for commercial use. The operating temperature range is from 0°C to 50°C. The cord length is 1.85 meters (72.83 inches).
The DCH2-050AU-0001 adapter has an output voltage of 6.5V and a power rating of 2W.
The maximum output current for the DCH2-050AU-0001 adapter is 300mA.
The adapter accepts an input voltage range of 90 to 264 VAC.
It features a fixed blade input connector (AS 3112) and a barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 9.5mm).
The adapter can operate within a temperature range of 0°C to 50°C.
The adapter measures 38.1mm in length, 26.0mm in width, and 44.4mm in height.
