| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

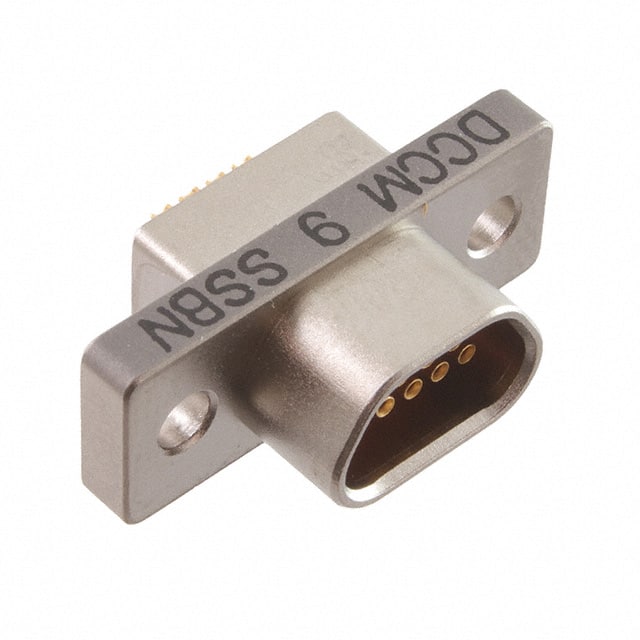

The Cinch DCCM9SSBN is a 9-position Micro-D receptacle from the Dura-Con series, designed for applications requiring a rugged, durable, and high-performance interconnect in minimal space. It features a nickel-plated aluminum alloy shell for EMI shielding and mechanical robustness.
The connector uses female socket contacts with 50.0µin gold plating for reliable signal transmission. Termination is via solder cups, and the connector mounts to a panel. The insulator material meets UL94 V-0 flammability rating. The contact arrangement is 2 rows with a 0.050 inch pitch and 0.043 inch row-to-row spacing.
Typical applications include miniaturized airborne electronics and data processing equipment where short signal paths and high reliability are required. The shielded design helps protect signal integrity in electrically noisy environments.
The DCCM9SSBN has 9 positions arranged in 2 rows.
The current rating is 3A per contact.
The connector is designed for panel mount with solder cup termination.
Yes, the connector features a nickel-plated aluminum alloy shell for shielding.
The contact finish is gold with a thickness of 50.0µin (1.27µm).
The material flammability rating is UL94 V-0.
