| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
282 pcs
|
282 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

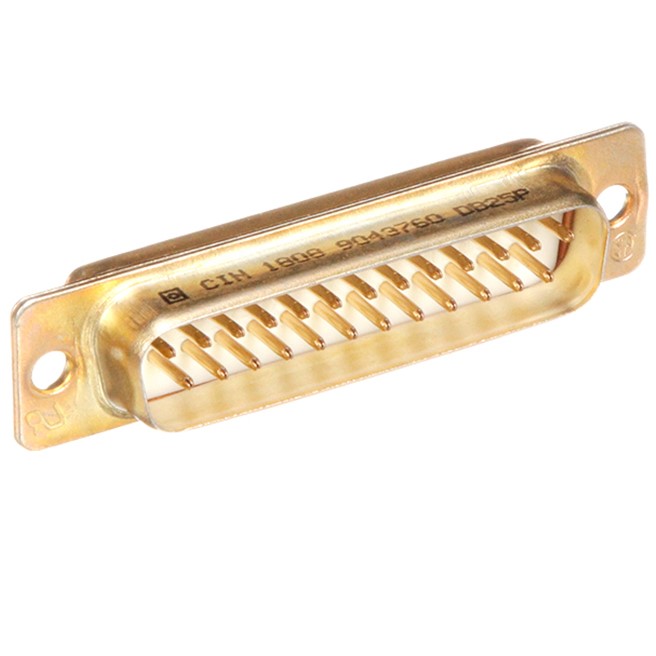

The Cinch DB25P is a standard D-Sub connector plug designed for free hanging (in-line) mounting. It accommodates 25 male pin contacts arranged in 2 rows, with a DB-25 shell size (3/DB/B).
Termination is via solder cups, allowing direct soldering of wires. The contacts are gold flashed for reliable signal transmission. The steel shell is finished with yellow chromate plated zinc for corrosion resistance. The insulator material is rated UL94 V-0 for flammability.
This connector is rated for 5A current per contact and is suitable for signal-level interconnections in a wide range of electronic equipment. The unthreaded housing/shell flange provides basic mounting without locking hardware.
The DB25P is a D-Sub plug connector with male pins.
The DB25P has 25 positions arranged in 2 rows.
The DB25P uses solder cup termination.
The DB25P is rated for 5A per contact.
The DB25P is designed for free hanging (in-line) mounting.
The shell size is 3 (DB, B) and the shell material is steel with yellow chromate plated zinc finish.
The material flammability rating is UL94 V-0.
