| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
22 pcs
|
22 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

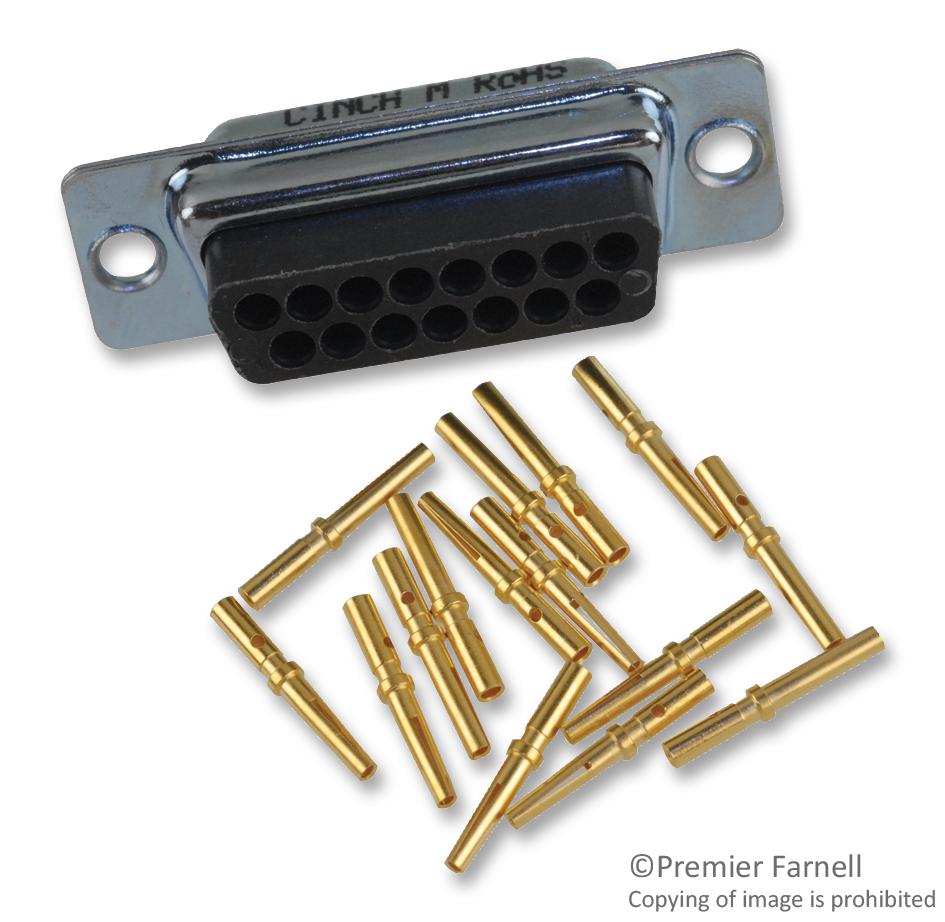

The DAU15S is a D-Sub receptacle connector manufactured by Cinch. It features 15 female socket contacts arranged in 2 rows, with a shell size of 2 (DA, A). The connector uses crimp termination for secure wire connections and is designed for free hanging (in-line) mounting. The shell is made of steel with yellow chromate plated zinc finish, providing durability and corrosion resistance. Contacts are gold plated with flash thickness for reliable signal transmission. The connector is rated for 5A current and has a UL94 V-0 flammability rating. It is RoHS3 compliant and REACH unaffected. This connector is suitable for signal applications requiring a standard D-Sub interface. The unthreaded housing/shell flange feature allows for straightforward installation. Note: The manufacturer page and datasheet for this specific part were not verified; specifications are based on existing database records.
15 positions.
5A.
Free hanging (in-line).
Crimp.
Gold.
Steel with yellow chromate plated zinc.
UL94 V-0.
