Mfr Part #:

DA5-050UK-B

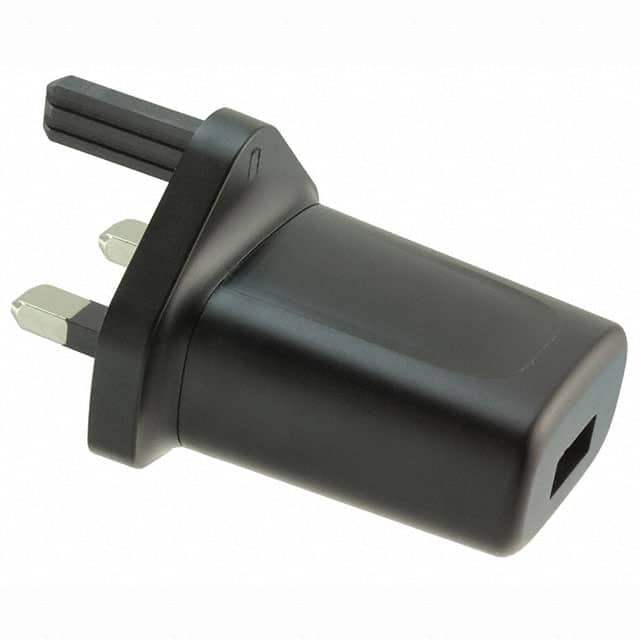

The Artesyn Embedded Power DA5-050UK-B is a 5W AC/DC wall mount adapter designed for ITE (Commercial) applications. It provides a 5V, 1A output with a fixed blade BS 1363 input connector.

Stock on Request

DA5-050UK-B Description

Short technical summary and product information.

The Artesyn Embedded Power DA5-050UK-B is a compact AC/DC wall mount adapter delivering 5W of power. It features a 5VDC output at 1A, utilizing a USB A receptacle for connection.

Designed for efficiency, this adapter meets Level VI and CoC Tier 2 standards, with a low no-load power consumption of 75mW maximum. The operating temperature range is from -10°C to 40°C.

Its mechanical specifications include dimensions of 47.5mm x 49.0mm x 41.5mm. The input connector is a BS 1363 fixed blade type, suitable for use in the United Kingdom. The adapter is approved by multiple agencies including CCC, CE, CSA, DEMKO CB, PSE, and UL.

This adapter is suitable for ITE (Commercial) applications and complies with RoHS3 standards.

DA5-050UK-B Quick Information

Product Type: AC DC Desktop, Wall Adapter

Canonical Name: Artesyn Embedded Power DA5-050UK-B AC/DC Desktop, Wall Adapter

DA5-050UK-B Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

DA5-050UK-B Features

5W AC/DC wall mount adapter
5VDC output at 1A
BS 1363 input connector
USB A receptacle output
Level VI efficiency rating

DA5-050UK-B Applications

Suitable for commercial information technology equipment.
Ideal for powering USB-powered devices.
Used in point-of-sale terminals and kiosks.
Designed for UK mains power outlets.

DA5-050UK-B FAQs

7 frequently asked questions generated from this part’s specifications.

What is the input voltage range?

100-240 VAC.

What are the output voltage and current?

5 VDC at 1 A.

What are the dimensions of the adapter?

47.5 mm x 49.0 mm x 41.5 mm.

What is the operating temperature range?

-10°C to 40°C.

What efficiency standards does it meet?

Meets Level VI and CoC Tier 2 efficiency.

What is the no-load power consumption?

Maximum 75 mW.

What connectors does it have?

Input: BS 1363 fixed blade; Output: USB A receptacle.

Category	AC DC Desktop, Wall Adapters
Manufacturer Name	Artesyn Embedded Power
Applications	ITE (Commercial)
Approval Agency	CCC, CE, CSA, DEMKO CB, PSE, UL
Current	1 A
Efficiency	Level VI, CoC Tier 2
Form	Wall Mount (Class II)
Height	41.5mm (1.63")
Input Connector	BS 1363
Input Type	Fixed Blade
Length	47.5mm (1.87")
No Load Power Consumption	75mW (Max)
Operating Temperature	-10°C ~ 40°C
Output Connector	USB A Receptacle
Power (Watts)	5 W
Region Utilized	United Kingdom
Voltage	100-240 VAC
Width	49.0mm (1.93")
