| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Form | |
| Halogen Free | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Width |

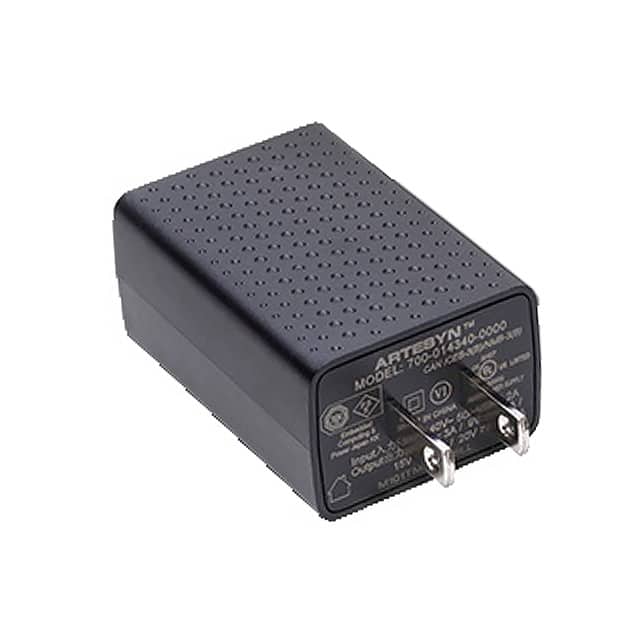

This Artesyn Embedded Power DA45C-J3WUS is a 45W AC DC wall adapter designed for ITE Commercial applications in North America. It provides multiple output voltage options including 5V, 9V, 15V, and 20V, with corresponding current ratings. The adapter features a standard NEMA 1-15P input connector and a USB C receptacle for output.
With dimensions of 58.0mm x 40.2mm x 27.0mm, this wall mount adapter operates within a temperature range of 0°C to 40°C and meets Level VI efficiency standards. It is classified as Wall Mount (Class II) with a fixed blade input type.
The DA45C-J3WUS is RoHS3 Compliant, has an MSL of 1, and is REACH Unaffected. Its compact form factor and versatile output make it suitable for various commercial electronic devices requiring reliable power.
The DA45C-J3WUS provides 5V, 9V, 15V, and 20V outputs.
The output current ratings are 3A at 5V, 9V, and 15V, and 2.25A at 20V.
The DA45C-J3WUS is rated for 45W output power.
The DA45C-J3WUS uses a NEMA 1-15P input connector.
The DA45C-J3WUS uses a USB C receptacle output connector.
The DA45C-J3WUS operates from 0°C to 40°C.
The DA45C-J3WUS is a wall mount Class II adapter with fixed blade input.
