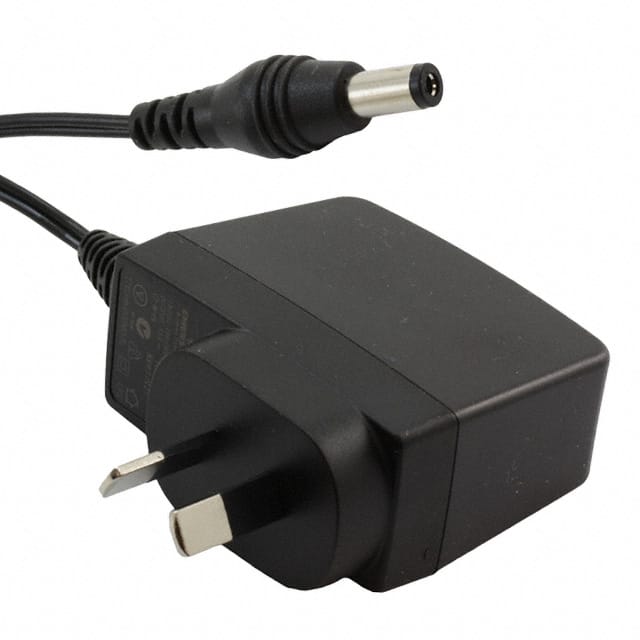

The Artesyn Embedded Technologies DA18-150AU-M is a versatile AC/DC wall mount adapter designed for commercial and medical applications. This unit delivers a stable 15V output with a maximum current of 1.2A, providing a total power of 18W. It meets Efficiency Level V standards, ensuring optimal energy usage.
The adapter features a compact form factor with dimensions of 60.0mm x 28.0mm x 54.3mm, making it suitable for space-constrained designs. The input connector is a Fixed Blade AS 3112 type, and the output is delivered via a standard Barrel Plug (2.5mm I.D. x 5.5mm O.D. x 9.5mm) with a positive center polarization. The operating temperature range is from 0°C to 40°C.
Designed for global use, it accepts an input voltage range of 90 to 264 VAC. The adapter comes with a 1.50m cord length and is certified by CB and CE approval agencies. Its wall mount form factor (Class II) simplifies integration into various systems.
The DA18-150AU-M adapter provides a 15V output voltage and a maximum current of 1.2A.
The power rating for the DA18-150AU-M adapter is 18W.
The input voltage range for the DA18-150AU-M adapter is 90 to 264 VAC.
The dimensions of the DA18-150AU-M adapter are 60.0mm x 28.0mm x 54.3mm.
The operating temperature range for the DA18-150AU-M is 0°C to 40°C.
The DA18-150AU-M uses a Barrel Plug with dimensions 2.5mm I.D. x 5.5mm O.D. x 9.5mm.
The DA18-150AU-M adapter is suitable for ITE (Commercial) and Medical applications.
