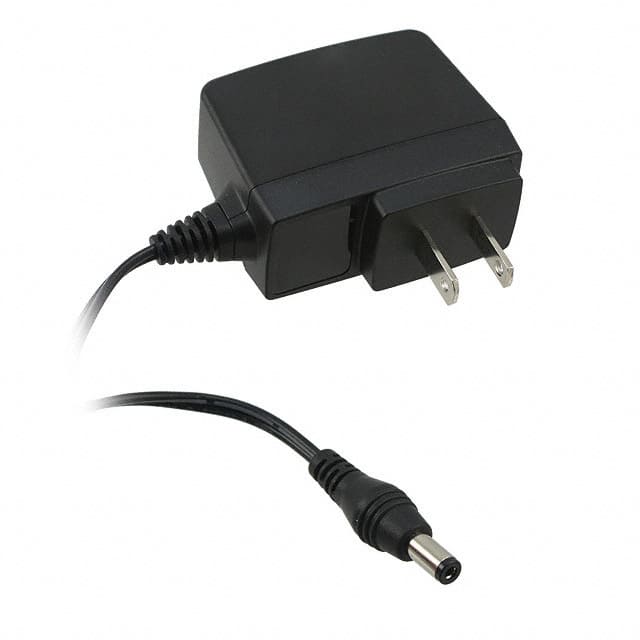

DA12-120US-M The Artesyn Embedded Power DA12-120US-M is a 12W AC/DC wall mount adapter providing a 12V output at 1A. It features a NEMA 1-15P input and a 2.5mm x 5.5mm barrel plug output.
Mfr Part #:

DA12-120US-M

Mfr Name: Artesyn Embedded Power
Artesyn Embedded Power
The Artesyn Embedded Power DA12-120US-M is a 12W AC/DC wall mount adapter providing a 12V output at 1A. It features a NEMA 1-15P input and a 2.5mm x 5.5mm barrel plug output.
Stock on Request

DA12-120US-M Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Cord Length
Current
Efficiency
Form
Height
Input Connector
Input Type
Length
Medical Grade
Operating Temperature
Output Connector
Polarization
Power (Watts)
Region Utilized
Voltage
Width
View Similar Products (0)

DA12-120US-M Description

Short technical summary and product information.

The Artesyn Embedded Power DA12-120US-M is an AC/DC wall mount adapter designed for ITE (Commercial) and Medical applications. It delivers a stable 12V output with a 1A current, providing a total power of 12W. The adapter features a NEMA 1-15P input connector and a standard 2.5mm I.D. x 5.5mm O.D. x 9.5mm barrel plug output.



With a compact form factor measuring 60.0mm x 28.0mm x 50.6mm, it is suitable for wall mounting as a Class II device. The operating temperature range is from 0°C to 40°C. This adapter is designed for North American regions and complies with Level V efficiency standards. It includes a 59-inch (1.50m) cord with positive center polarization.



Compliance includes RoHS3 status and Moisture Sensitivity Level 1. Approval agencies CB and CE have certified this power supply.

DA12-120US-M Quick Information

Product Type: AC/DC Desktop, Wall Adapter
Canonical Name: Artesyn Embedded Power DA12-120US-M AC/DC Wall Mount Adapter
Subcategory: Wall Mount Adapter

DA12-120US-M Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DA12-120US-M Features

  • 12W AC/DC wall mount adapter.
  • 12V output at 1A current.
  • NEMA 1-15P input connector.
  • 2.5mm x 5.5mm barrel plug output.
  • 0°C to 40°C operating temperature.

DA12-120US-M Applications

  • Suitable for ITE (commercial) equipment.
  • Ideal for medical device power supply.
  • Use in North American wall outlets.
  • Powering low-power electronics requiring 12V DC.

DA12-120US-M FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage of the DA12-120US-M?

12V DC.

What is the output current rating?

1A.

What is the output power?

12W.

What is the operating temperature range?

0°C to 40°C.

What type of input connector does the DA12-120US-M have?

NEMA 1-15P.

What type of output connector does it use?

Barrel plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm.

What is the efficiency level of this adapter?

Level V.
