| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Width |

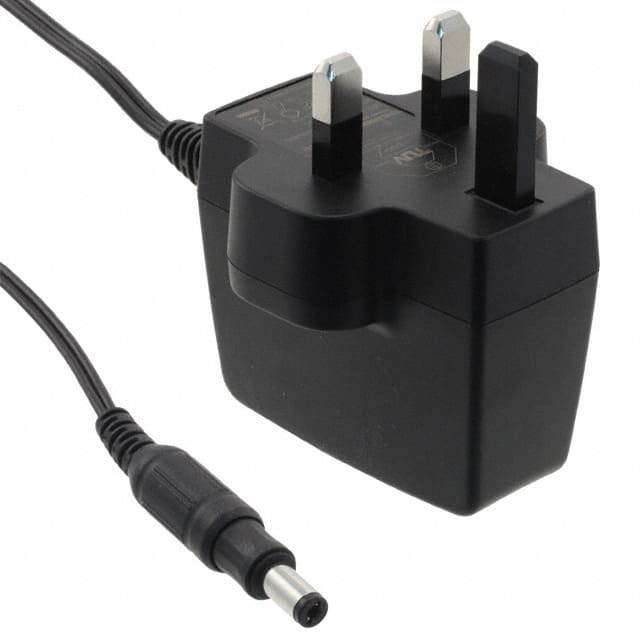

The Artesyn Embedded Power DA12-120UK-M is an AC/DC wall mount adapter designed for ITE (Commercial) and Medical applications. It delivers a stable 12V output with a current rating of 1A, providing a total power of 12W. This adapter meets Level V efficiency standards, ensuring energy conservation.
The unit features a fixed blade input type with a BS 1363 connector, suitable for use in the United Kingdom. The output is delivered via a standard barrel plug with 2.5mm I.D. and 5.5mm O.D., and a cord length of 59 inches (1.50m). The adapter operates within a temperature range of 0°C to 40°C and has dimensions of 60.0mm x 50.2mm x 48.3mm.
Designed as a Class II wall mount unit, the DA12-120UK-M offers a polarization of Positive Center for the output connector. It is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited, indicating it is not sensitive to moisture under normal conditions. The REACH status is listed as Unaffected.
The output voltage is 12V DC.
0°C to 40°C.
BS 1363 fixed blade plug for UK.
Barrel plug with 2.5mm inner diameter and 5.5mm outer diameter, 9.5mm length.
Wall mount (Class II).
CB and CE.
ITE (commercial) and medical.
