| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Current - Output (Max) | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Tape & Reel | |
| Voltage | |
| Voltage - Output | |
| Width |

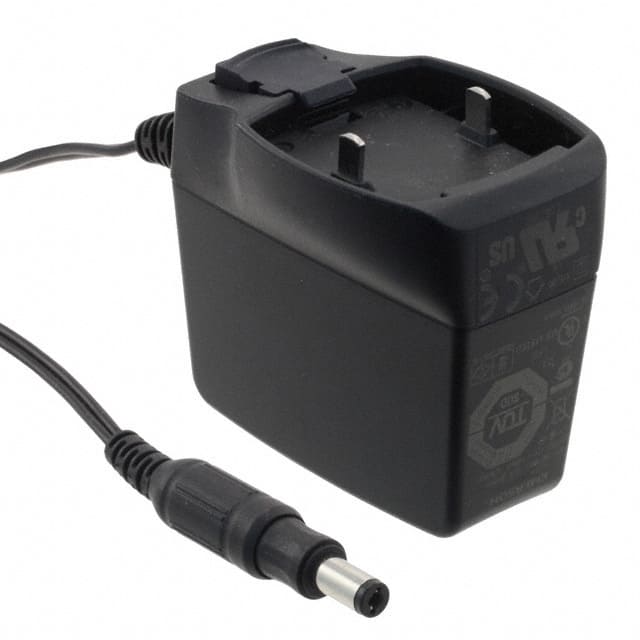

The DA12-120MP-M2.1 from Artesyn Embedded Power is a wall mount AC/DC adapter designed for ITE (commercial) and medical applications. It delivers a regulated 12V DC output with a maximum current of 1A, providing 12W of power. The adapter accepts a universal input voltage range of 90 to 264 VAC, making it suitable for worldwide use. Efficiency meets Level V standards, ensuring energy-saving performance.
The output connects via a barrel plug with 2.1mm inner diameter and 5.5mm outer diameter, with a positive center polarity. The unit includes a 1.5m output cord and uses a multi-blade input connector (blades sold separately) for international plug compatibility. The adapter is safety approved with CB and CE certifications.
Mounted directly to a wall outlet with a Class II design, the adapter fits compact dimensions of 60.0mm x 40.2mm x 52.2mm. It operates within a temperature range of 0°C to 40°C. The part is RoHS3 compliant and REACH unaffected, though these compliance statuses are unverified.
The adapter provides 12V DC output at 1 amp (12W).
The adapter accepts universal input from 90 to 264 VAC.
The operating temperature range is 0°C to 40°C.
Yes, it is marked as RoHS3 Compliant, though this status is unverified.
It has CB and CE safety approvals.
It is suitable for ITE (commercial) and medical equipment applications.
The adapter meets Level V efficiency standards.
