| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

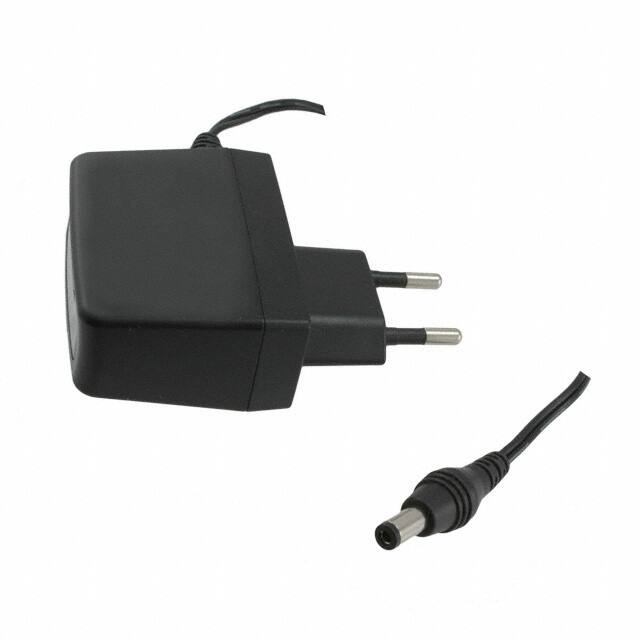

The Artesyn Embedded Power DA12-050EU-M is an AC/DC wall mount adapter designed for ITE (Commercial) and Medical applications. It delivers a stable 5V output with a maximum current of 2A, providing a total power of 10W. This adapter meets Level V efficiency standards.
Featuring a European input connector (CEE 7/16) and a fixed blade input type, the DA12-050EU-M is suitable for use in Europe. The output is delivered via a 2.5mm I.D. x 5.5mm O.D. barrel plug with positive center polarization. The adapter has a compact form factor, measuring 60.0mm in length, 28.0mm in width, and 63.1mm in height.
Operating within a temperature range of 0°C to 40°C, this wall mount adapter (Class II) is designed for reliable performance. It includes approval agency certifications from CB and CE.
The DA12-050EU-M provides an output voltage of 5V and a maximum output current of 2A.
The DA12-050EU-M has a power rating of 10W.
The adapter operates within a temperature range of 0°C to 40°C.
The DA12-050EU-M uses a CEE 7/16 input connector.
The adapter measures 60.0mm in length, 28.0mm in width, and 63.1mm in height.
