| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
98 pcs
|
98 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Circuit | |
| Current Rating (Amps) | |
| Differential Travel | |
| Ingress Protection | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Overtravel | |
| Release Force | |
| Switch Function | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating |

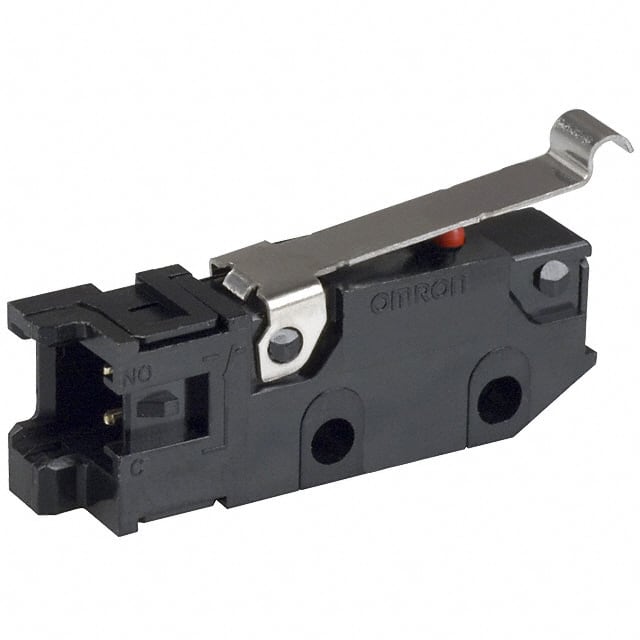

The Omron D3M-01L3 is a snap-action limit switch designed for various applications. It operates with a SPST-NC (Single Pole Single Throw - Normally Closed) circuit, providing reliable switching functionality.
This limit switch is rated for a maximum voltage of 30V and a current rating of 100mA (DC). It features a lever, simulated roller actuator type and a chassis mount for secure installation. The termination style is connector.
Key specifications include an operating temperature range of -25°C to 85°C, an operating force of 102gf, and a release force of 10gf. It also has an overtravel of 0.026" (0.7mm) and a differential travel of 0.025" (0.6mm). The ingress protection rating is IP40.
The D3M-01L3 is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The voltage rating is 30V.
The current rating is 100mA.
The operating temperature range is -25°C to 85°C.
It has a lever, simulated roller actuator.
It is a chassis mount switch.
The RoHS status is RoHS3 Compliant.
The MSL is 1.
