| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
153 pcs
|
153 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Circuit | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Differential Travel | |
| Ingress Protection | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Overtravel | |
| Release Force | |
| Switch Function | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating | |
| Weight |

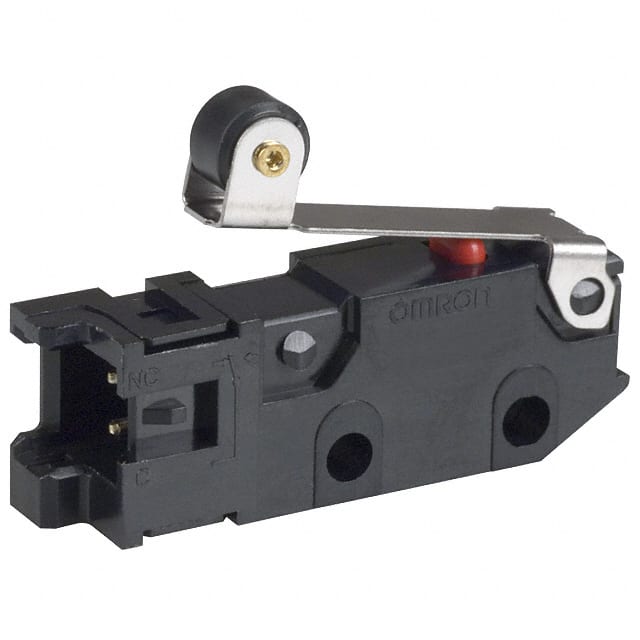

The Omron D3M-01K2 is a subminiature snap action switch designed for reliable operation in various applications. It features a SPST-NC (Single Pole Single Throw - Normally Closed) contact configuration, making it suitable for control circuits requiring a normally closed state.
This switch operates at a voltage rating of 30V and a current rating of 100mA (DC). It is designed for chassis mounting and offers a termination style using connectors for easy wiring. The operating temperature range is from -25°C to 85°C, ensuring performance in diverse environmental conditions.
Key mechanical specifications include an operating force of 51gf, a release force of 6.118gf, and an overtravel of 0.047 inches (1.2mm). The switch also has a differential travel of 0.031 inches (0.8mm). Its mechanical life expectancy is rated at 500,000 operations, and its electrical life expectancy is 200,000 operations.
The D3M-01K2 has an ingress protection rating of IP40. It is compliant with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The D3M-01K2 has an SPST-NC circuit configuration.
The maximum contact resistance is 100 milliohms.
-25°C to 85°C.
The dielectric strength between terminals is 1,000 VAC.
The dielectric strength between charged metal part and ground is 1,500 VAC.
The electrical life expectancy is 200,000 operations.
Yes, it is RoHS3 compliant.
