| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
140 pcs
|
140 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Circuit | |
| Current Rating (Amps) | |
| Differential Travel | |
| Ingress Protection | |
| Lead Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Overtravel | |
| Release Force | |
| Switch Function | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating |

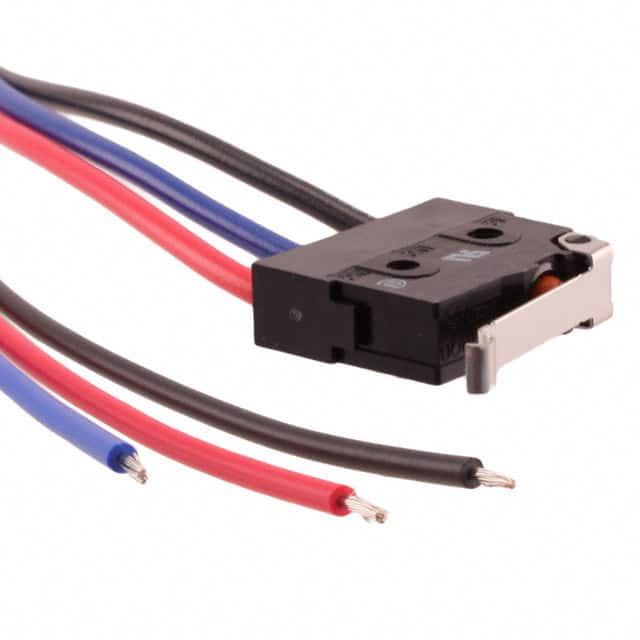

The Omron D2SW-3L3MS is a basic/snap action switch designed for reliable operation. It features a SPDT contact form and a switch function of On-Mom. The switch is rated for 3A at 125V AC/DC, making it suitable for various electrical applications.
Mechanical specifications include an operating force of 0.6 N (60gf), a release force of 6.118 gf, differential travel of 0.031" (0.8mm), and overtravel of 0.040" (1.0mm). The actuator type is a lever with a simulated roller.
Environmental protection is provided by an IP67 rating, indicating dust-tight and waterproof capabilities. The operating temperature range is from -40°C to 85°C. The switch is mounted via chassis mount and utilizes wire leads for termination.
This component is part of the D2SW series from Omron, offering robust performance for demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Omron D2SW-3L3MS switch has a current rating of 3A.
The voltage rating for the D2SW-3L3MS is 125V.
The operating force for the D2SW-3L3MS is 0.6 N.
The D2SW-3L3MS switch has an IP67 rating.
The operating temperature range for the D2SW-3L3MS is -40°C to 85°C.
The D2SW-3L3MS features a lever with a simulated roller actuator.
