| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
395 pcs
|
395 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Circuit | |
| Contact Form | |
| Current Rating | |
| Current Rating (Amps) | |
| Differential Travel | |
| Failure Rate | |
| Ingress Protection | |
| Lead Style | |
| Mounting Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Overtravel | |
| Release Force | |
| Switch Function | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage Rating |

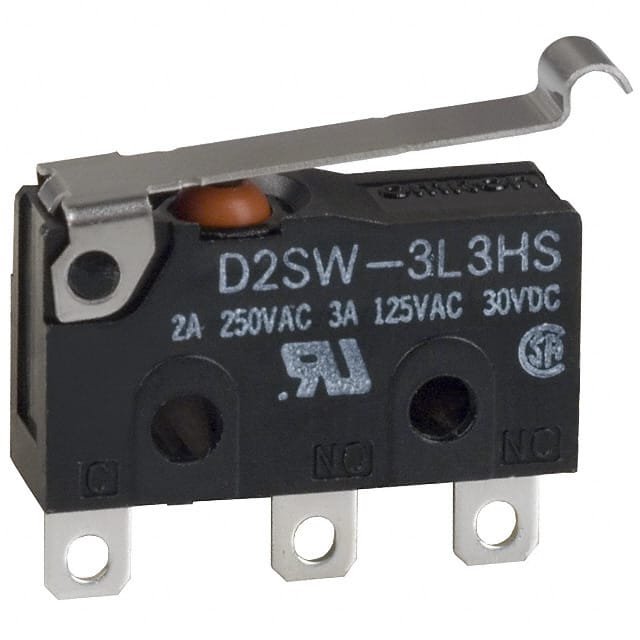

The Omron D2SW-3L3HS is a sealed subminiature basic snap action switch designed for reliable operation in various applications. It features an SPDT circuit configuration and is rated for a current of 3A at 125V AC.
Key electrical and mechanical specifications include an operating voltage of 125V AC, an operating force of 60gf, and a release force of 6.118gf. The switch has a differential travel of 0.031" and overtravel of 0.040". It is sealed to an IP67 rating, providing protection against dust and water.
This switch is designed for chassis mounting and utilizes solder lug termination. The operating temperature range is from -40°C to 85°C, making it suitable for a wide range of environmental conditions. The actuator type is a lever with a simulated roller.
The D2SW-3L3HS complies with RoHS3 standards and has an MSL rating of 1. Its REACH status is unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the D2SW-3L3HS switch is 125 VAC.
The operating temperature range is -40°C to 85°C.
Yes, the D2SW-3L3HS is RoHS3 compliant.
