| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Circuit | |
| Current Rating (Amps) | |
| Differential Travel | |
| Features | |
| Ingress Protection | |
| Lead Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Overtravel | |
| Release Force | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

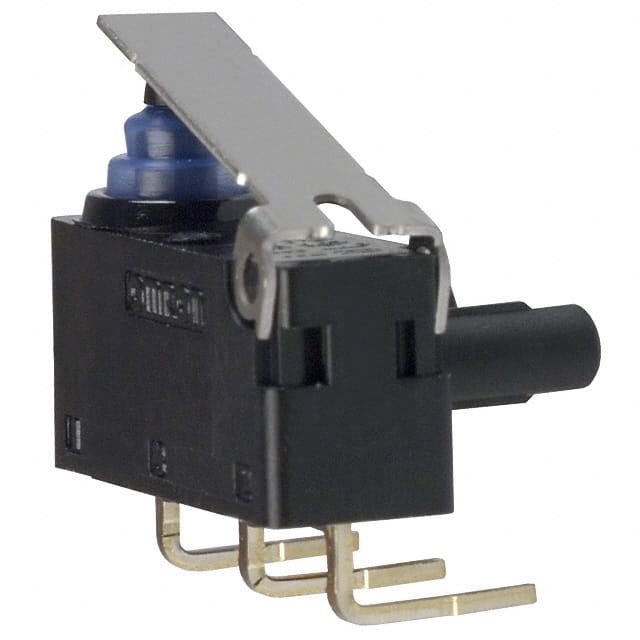

The Omron D2HW-BR211DR is a snap-action limit switch designed for various applications. It features an SPDT circuit and a voltage rating of 125V, with a current rating of 100mA (AC) and 2A (DC).
This switch is designed for through-hole mounting with a right-angle orientation and a straight lever actuator. It operates within a temperature range of -40°C to 85°C and offers a high level of protection with an IP67 rating, making it dust-tight and waterproof.
Key mechanical specifications include an operating force of 76gf, a release force of 7.138gf, and an overtravel of 0.062" (1.6mm). The differential travel is 0.5mm. The switch also includes support posts for mounting.
Environmental compliance includes RoHS3 compliance and an MSL of 1. The REACH status is unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the D2HW-BR211DR is 125V.
The current rating is 100mA for AC and 2A for DC.
The operating temperature range is -40°C to 85°C.
Yes, the D2HW-BR211DR is RoHS3 Compliant.
The ingress protection rating is IP67, meaning it is dust-tight and waterproof.
