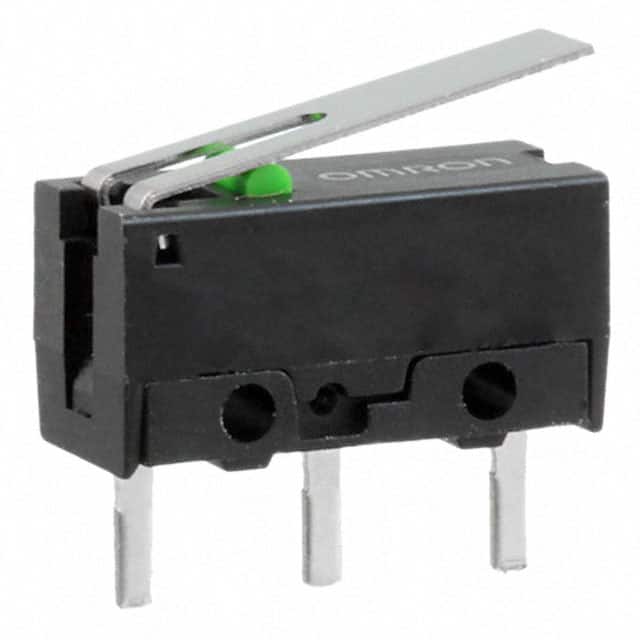

D2FS-FL-N The Omron D2FS-FL-N is a snap-action limit switch with a SPST-NO circuit, rated for 100mA at 6V. It features a straight lever actuator and through-hole mounting.
Mfr Part #:

D2FS-FL-N

Available from 1 distributors
Mfr Name: Omron
Omron
The Omron D2FS-FL-N is a snap-action limit switch with a SPST-NO circuit, rated for 100mA at 6V. It features a straight lever actuator and through-hole mounting.
✓ Total Stock: 10 pcs
$ Price Range: $0.75

D2FS-FL-N Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

D2FS-FL-N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Circuit
Current Rating (Amps)
Differential Travel
Ingress Protection
Lead Style
Mounting Type
Operating Force
Operating Temperature
Overtravel
Release Force
Switch Function
Termination Style
Voltage Rating
View Similar Products (0)

D2FS-FL-N Description

Short technical summary and product information.

The Omron D2FS-FL-N is a compact snap-action limit switch designed for various applications. It features a Single Pole Single Throw Normally Open (SPST-NO) circuit configuration, capable of handling a current rating of 100mA at a voltage of 6V DC.



This switch is equipped with a straight lever actuator and utilizes a PC pin termination style for easy integration into printed circuit boards. The mounting type is through-hole, ensuring a secure connection. The operating temperature range for this component is from -20°C to 70°C, and it offers an ingress protection rating of IP40.



Key mechanical specifications include an operating force of 25gf, a release force of 2.039gf, and an overtravel of 0.022" (0.55mm). The differential travel is 0.5mm (0.020"). The switch function is Off-Mom, indicating it returns to its normal state when the actuating force is removed.



This component is suitable for applications requiring reliable switching with precise actuation. Its robust construction and specified operating parameters make it a dependable choice for control and automation systems.

D2FS-FL-N Quick Information

Product Type: Limit Switch
Canonical Name: Omron D2FS-FL-N SPST-NO Limit Switch
Subcategory: Limit Switch

D2FS-FL-N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

D2FS-FL-N Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

D2FS-FL-N Features

  • SPST-NO circuit configuration.
  • Rated for 100mA at 6V DC.
  • Straight lever actuator.
  • Through-hole mounting type.
  • Operates from -20°C to 70°C.

D2FS-FL-N Applications

  • Used in control and automation systems.
  • Suitable for precise switching applications.
  • Ideal for PCB integration.
  • General purpose industrial applications.

D2FS-FL-N FAQs

6 frequently asked questions generated from this part’s specifications.
What is the voltage rating of the Omron D2FS-FL-N limit switch?

The voltage rating is 6 V.

What is the current rating of the D2FS-FL-N switch?

The current rating is 100mA (DC).

What type of actuator does the D2FS-FL-N have?

It has a straight lever actuator.

What is the operating temperature range for this Omron switch?

The operating temperature range is -20°C to 70°C.

How is the D2FS-FL-N switch mounted?

It is mounted using the through-hole method.

What is the ingress protection rating of the D2FS-FL-N?

The ingress protection rating is IP40.
