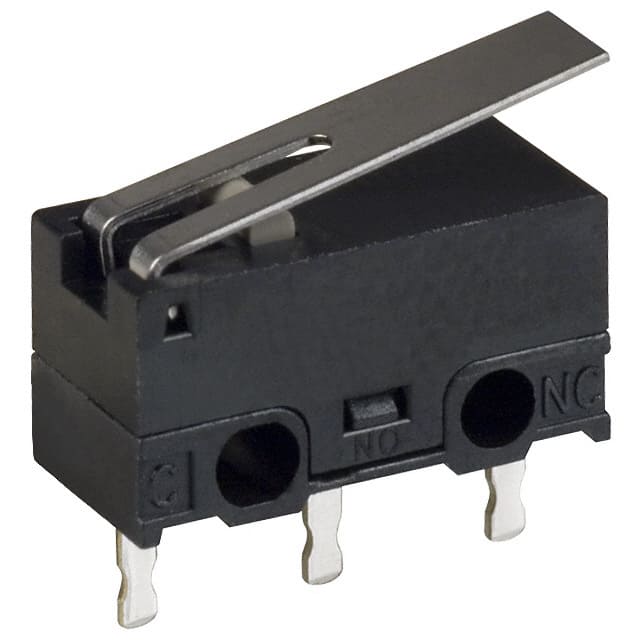

D2F-L The Omron D2F-L is a snap-action limit switch with an SPDT circuit, rated for 3A at 125V. It operates within a temperature range of -40°C to 85°C.
Mfr Part #:

D2F-L

Available from 1 distributors
Mfr Name: Omron
Omron
The Omron D2F-L is a snap-action limit switch with an SPDT circuit, rated for 3A at 125V. It operates within a temperature range of -40°C to 85°C.
✓ Total Stock: 13 pcs
$ Price Range: $0.75

D2F-L Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
13 pcs
On Request
13 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

D2F-L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Circuit
Current Rating (Amps)
Differential Travel
Ingress Protection
Lead Style
Mounting Type
Operating Force
Operating Temperature
Overtravel
Release Force
Switch Function
Termination Style
Voltage Rating
View Similar Products (0)

D2F-L Description

Short technical summary and product information.

The Omron D2F-L is a compact snap-action limit switch designed for reliable operation in various applications. It features a Single Pole Double Throw (SPDT) circuit and is rated for a current of 3A AC and 2A DC at 125V.



This switch is built to withstand a wide operating temperature range from -40°C to 85°C, making it suitable for diverse environmental conditions. The mechanical specifications include an operating force of 80gf, a release force of 5.099gf, and an overtravel of 0.022" (0.55mm). The differential travel is 0.5mm (0.020").



Designed for easy integration, the D2F-L utilizes a straight lever actuator and PC pin termination for through-hole mounting. Its IP40 ingress protection rating ensures resistance against solid objects larger than 1mm.



This component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1. It is suitable for applications requiring a dependable and durable limit switch with precise actuation.

D2F-L Quick Information

Product Type: Limit Switch
Canonical Name: Omron D2F-L SPDT Limit Switch
Subcategory: Limit Switch

D2F-L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

D2F-L Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

D2F-L Features

  • SPDT circuit for versatile switching.
  • Rated for 3A AC and 2A DC at 125V.
  • Wide operating temperature range: -40°C to 85°C.
  • Through-hole mounting with PC pin termination.
  • IP40 ingress protection rating.

D2F-L Applications

  • Ideal for position sensing applications.
  • Suitable for industrial automation controls.
  • Used in equipment requiring reliable switching.
  • Applicable in diverse environmental conditions.

D2F-L FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the D2F-L?

-40°C to 85°C.

What circuit configuration does the D2F-L have?

SPDT (Single Pole Double Throw).

What is the voltage rating of the D2F-L?

125 V.

What is the current rating of the D2F-L?

3A (AC) and 2A (DC).

What type of actuator does the D2F-L use?

Lever, straight.

What is the ingress protection rating of the D2F-L?

IP40.
