| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Input Range | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

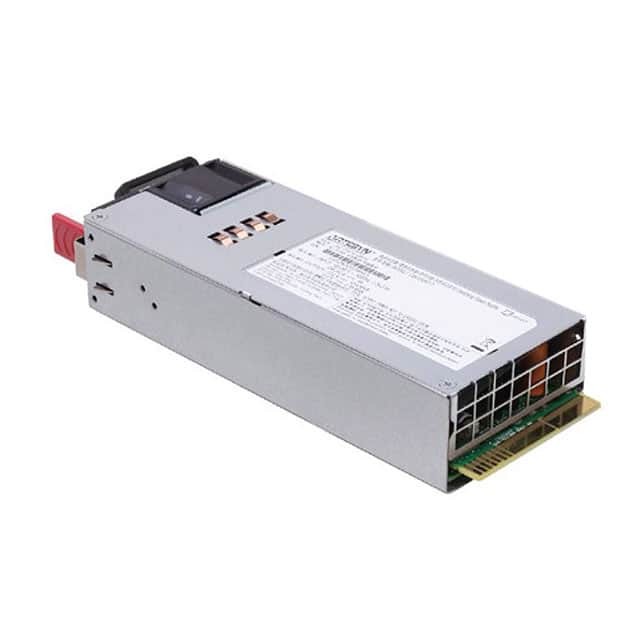

The Artesyn Embedded Power CSU550AP-3-001 is a 550W front-end bulk power supply designed for distributed power systems. Housed in a 1U high rack-mount enclosure measuring 7.28 x 2.89 inches, it offers a high power density of 17 W/in³ and utilizes the latest power switching technology.
This AC/DC converter provides a main 12V output capable of up to 45A and a standby 12VSB output up to 2.5A. It features a wide input voltage range of 90-264 Vac and boasts 80 PLUS Platinum efficiency, achieving up to 94% efficiency. Key electrical specifications include active power factor correction, EN61000-3-2 harmonic compliance, and a power factor greater than 0.89 at 10% load.
The CSU550AP-3-001 supports N+M redundancy, hot-pluggability, and active current sharing, making it suitable for high-availability systems. It is PMBus compliant, offering full digital control and accurate input power reporting. Safety certifications include UL/cUL, CB Report, CE Mark, CCC, BSMI, KC, and TÜV.
Designed for ITE (Commercial) applications, this converter operates within a temperature range of 0°C to 50°C with derating. Its compact form factor and robust feature set make it ideal for space-constrained, demanding environments.
The total output power is 550 W continuous.
The input voltage ranges are 90 - 264 Vac and 164 - 320 Vdc.
The efficiency is 80 PLUS Platinum, with a typical value of 94%.
The main DC output voltage is nominally 12.15V, with a regulation range of 11.4V to 12.6V, and a maximum output current of 45A.
The standby DC output voltage is nominally 12.2V, with a regulation range of 11.4V to 12.6V, and a maximum output current of 2.5A.
The dimensions are 185.0mm (Length) x 73.5mm (Width) x 40.0mm (Height).
The operating temperature range is 0°C to 50°C, with derating.
