| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage |

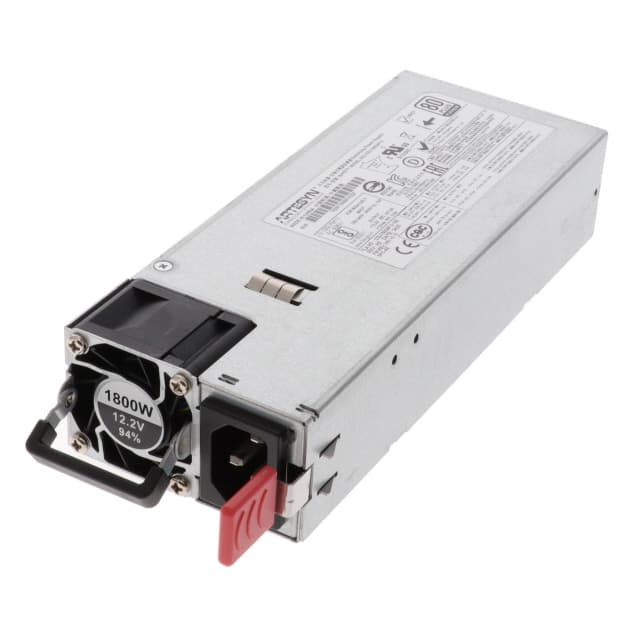

The Artesyn Embedded Power CSU1800AP-3-100 is a high-power AC/DC converter designed for ITE (Commercial) applications. This front-end converter delivers 1800W of power with an impressive efficiency rating of 94%.
Key electrical specifications include an input voltage range of 90-127 VAC and 180-264 VAC, and it can provide up to 147.5A of current. The unit supports features such as adjustable output, load sharing, PFC, PMBus™, and a standby output, making it versatile for various system designs.
Mechanically, the CSU1800AP-3-100 is designed for rack mounting, with dimensions of 185.0mm in length, 73.5mm in width, and 39.0mm in height. It operates within a temperature range of -5°C to 55°C, with derating applied at higher temperatures. The converter is approved by multiple agencies including CB, CE, CQC, cUL, EAC, KC, and UL.
90-127 VAC or 180-264 VAC.
12.2V.
-5°C to 55°C with derating.
94%.
Rack mount.
185.0mm x 73.5mm x 39.0mm (7.28" x 2.89" x 1.54").
CB, CE, CQC, cUL, EAC, KC, UL.
