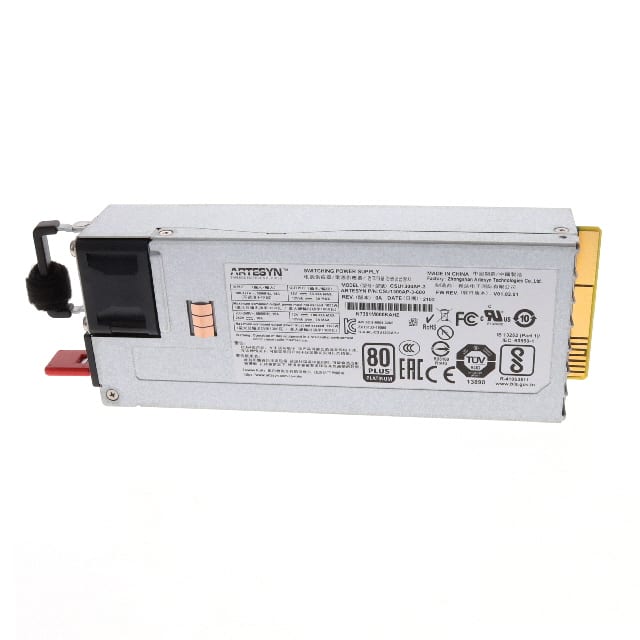

The Advanced Energy CSU1300AP-3-600 is a 1300 Watt front-end bulk power supply designed for distributed power systems. It operates with a wide input voltage range of 90-264 Vac or 180-300 Vdc and delivers a nominal output of 12.2V at up to 108.3A.
This power supply boasts 80 PLUS Platinum efficiency and active power factor correction, ensuring optimal energy usage. It is housed in a compact 1U high rack-mount enclosure measuring 7.28 x 2.89 inches, making it suitable for space-constrained applications. The design utilizes the latest power switching technology and high-density component packaging.
Key features include N+M redundancy, hot-pluggability, active current sharing, and PMBus compliance for full digital control. It meets EN61000-3-2 harmonic compliance and Class A conducted/radiated EMI standards. Safety approvals include UL/cUL, CE Mark, CCC, BSMI, KC, and TÜV.
90-264 Vac or 180-300 Vdc.
185.0mm x 73.5mm x 39.0mm, Rack Mount.
0°C to 55°C.
1300 W continuous.
CB, CCC, CE, cUL, KC, TUV, UL.
Yes, active current sharing from 20% loading.
Over current, over voltage, under voltage, overtemperature, and fan fault protection.
